Heavy-Duty Flange Bracket with Pre-installed Hangers
Heavy-Duty Flange Bracket with Pre-installed Hangers
SKU:CRA-7dd988
Heavy-duty bracket with pre-installed hangers for secure mounting on beam flanges, ideal for industrial applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Heavy-Duty Flange Bracket with Pre-installed Hangers
$89.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Flange Bracket with Pre-installed Hangers
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

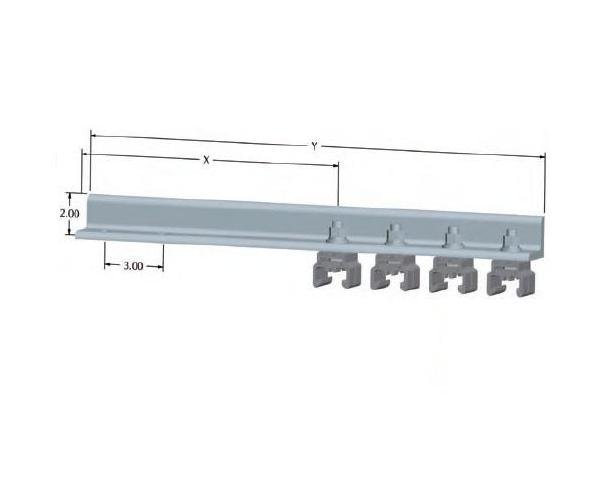

The Heavy-Duty Flange Bracket is a robust mounting solution designed for industrial applications, specifically crafted to securely attach to the top flange of beams. Constructed from 2"x 2" plated steel angle measuring 3/8" thick, this bracket offers exceptional durability and support. It comes with four pre-installed hangers made of standard Polycarbonate, ensuring easy installation and reliability. With an impressive Amperage Rating of 500A, this bracket is suitable for heavy-duty conductor bar systems, providing a safe and efficient power distribution solution. Measuring 13 1/4" in X dimension and 23 1/2" in Y dimension, this bracket offers a solid and precise fit.
Product Specifications
Specifications Amperage Rating
500 A
Specifications Material
Plated Steel
Specifications Type
Bracket with four pre-installed hangers - standard Polycarbonate
Specifications Weight
8.8 lb
Specifications X
13 1/4 in
Specifications Y
23 1/2 in
