Heavy-Duty Flange Mount Bracket with Hangers
Heavy-Duty Flange Mount Bracket with Hangers
SKU:CRA-9337a7
Durable Heavy-Duty Flange Mount Bracket with Hangers for secure top flange beam mounting. Amperage rating 700-1500A, plated steel construction, pre-installed hangers with insulators.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Heavy-Duty Flange Mount Bracket with Hangers
$79.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Flange Mount Bracket with Hangers
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

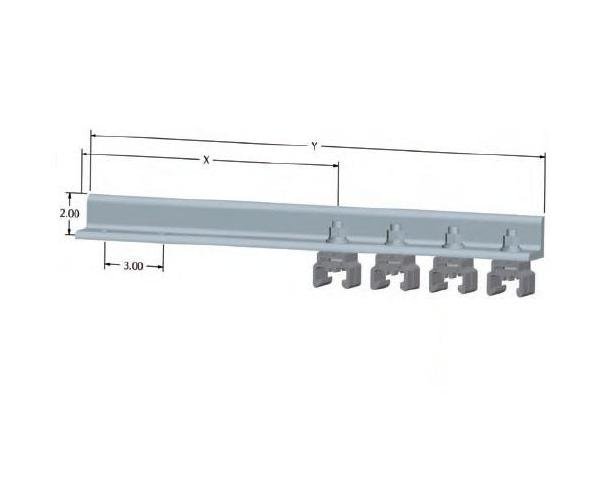

The Heavy-Duty Flange Mount Bracket with Hangers is designed for efficient mounting on the top flange of beams, offering rugged support for conductor bar systems. Constructed from plated steel, this 2" x 2" angle bracket, 3/8" thick, comes with four pre-installed hangers featuring standard polycarbonate with insulators. With an amperage rating ranging from 700 A to 1500 A, this bracket ensures reliable power distribution. Measuring X: 13 1/4 in and Y: 23 1/2 in, and weighing 8.9 lb, this bracket is a sturdy solution for industrial applications.
Product Specifications
Specifications Amperage Rating
700 A | 1000 A | 1500 A
Specifications Material
Plated Steel
Specifications Type
Bracket with four pre-installed hangers - standard Polycarbonate with insulators
Specifications Weight
8.9 lb
Specifications X
13 1/4 in
Specifications Y
23 1/2 in
