Heavy-Duty Flanged Plastic Cap for Straight Threads

Name: Heavy-Duty Flanged Plastic Cap for Straight Threads
Brand: MOCAP LLC
SKU: FLA-325edc
Price: 29.99 USD
Availability: OutOfStock

SKU:FLA-325edc

Protect straight threads with durable, easy-to-assemble Flanged Plastic Caps in various sizes. Ideal for manual or automated applications.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

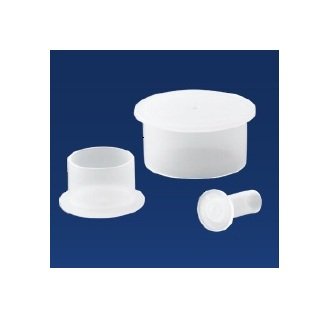

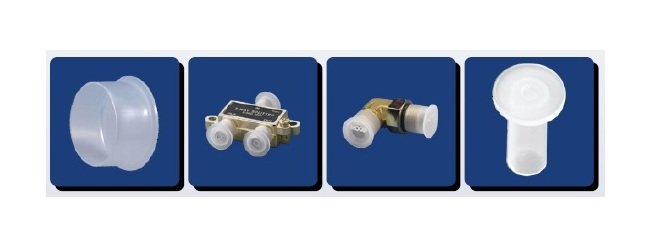

Ensure the protection of standard straight threads with our MOCAP FCS Series flanged polyethylene plastic caps. Designed for easy assembly and removal, these caps feature a natural color for quick visual verification of threads or o-rings. Available in sizes fitting 7/16 in to 1 5/8 in straight threads, these flanged caps are ideal for both manual and automated applications, serving as reliable thread protectors or end caps.

Product Specifications

Features 0

Additional series available to fit Standard Straight Threads and BSP & NPT ThreadsFlanged for easy removalUse as thread protector or end capSizes also available for metric, BSP & NPT threads and fittings

Manufacturing Notes 0

MOCAP stocks Flanged Plastic Caps for Standard Straight Threads in many sizes for immediate shipment.MOCAP now offers Micro-Pack and Mini-Pack quantities when less than case quantities are what you really need.Micro-Packs are only available online.

Specifications Box Quantity

1000

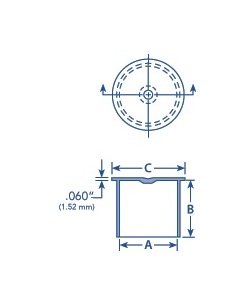

Specifications Flange Outer Diameter Dimension C

1.880 in | 47.8 mm

Specifications Flange Thickness

0.060 in | 1.52 mm

Specifications Inside Diameter Dimension A

1.612 in | 40.9 mm

Specifications Inside Length Dimension B

0.850 in | 21.6 mm

Specifications Material

Polyethylene

Specifications Micro Pack Quantity

Specifications Mini Pack Quantity

200

Specifications Standards

RoHS Compliant

Specifications To Fit Standard Thread Size

1 5/8 in
