Heavy-Duty Forged Brass Ball Valve
Heavy-Duty Forged Brass Ball Valve
SKU:VAL-067118
Durable forged brass ball valve with maintenance-free seals and full port design. Pressure rated to 150 PSI for steam and 600 PSI for water/oil/gas. CSA, UL, FM certified.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Heavy-Duty Forged Brass Ball Valve
$49.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Forged Brass Ball Valve
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy-Duty Forged Brass Ball Valve is engineered for superior performance and durability. Featuring maintenance-free double O-ring stem seals, a blowout-proof stem, and chrome-plated vented ball, this valve ensures reliable operation in demanding environments. With a full port design and PTFE seats, it offers maximum flow capacity and lasting seal integrity. Pressure rated to 150 PSI for saturated steam and 600 PSI for cold water, oil, or gas, this valve meets stringent industry standards including CSA, UL, and FM certifications.
Product Specifications

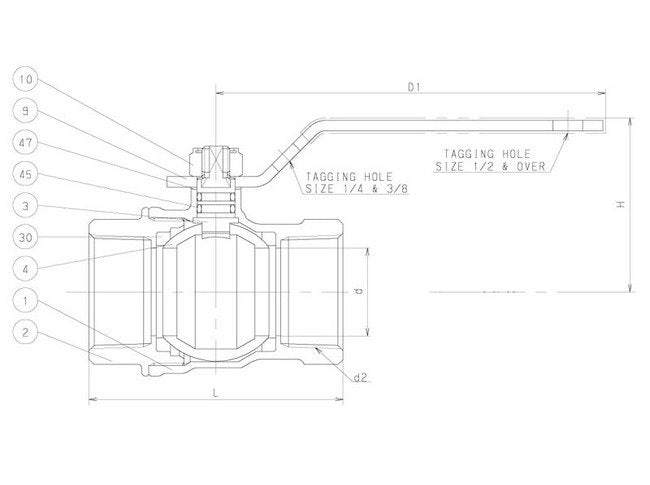

Material List 0
No. Name of Part Specification 1 Body Forged Brass (B283, C37700) 2 Body Cap Forged Brass (B283, C37700) 3 Stem Brass Rod (B16) (Ni Plating) 4 Ball (Vented) Forged Brass (B283, C37700) (CR. Plating) Straight or Hollow Ball 9 Handle Carbon Steel (Electroplated Zinc with Plastic Covering) 10 Handle Nut Carbon Steel 30 Ball Seats PTFE 45 O-rings FPM 47 Thrust Washer PBT
Specifications Approx Net Wt
68.00
Specifications Carton Qty
24
Specifications Class
AKSZA
Specifications Dimension D
1.26
Specifications Dimension D1
4.33
Specifications Dimension D1 Max
1.382
Specifications Dimension D1 Min
1.378
Specifications Dimension D2
1 1/4 inches
Specifications Dimension H
2.16
Specifications Dimension L
3.31
Specifications Dimension L1
2.00
Specifications End Size
Threaded
Specifications Material
Brass
Specifications Pressuretemperature
150 PSI - Saturated Steam to 366°F | 600 PSI - Non-Shock Cold Water, Oil or Gas
Specification 0
Approved valve shall have two piece forged brass body, blowout proof stem (Ni Plated), PTFE seats, maintenance free double o-ring stem seals, chrome plated ball and full port design. Valves shall be pressure rated to 150 WSP/600 WOG and conform to MSS-SP 110 and certified to CSA, UL & FM.KITZ Code No. 58 (AKSZA) Threaded Ends59 (CSZA) Solder Ends
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Wall Thickness KITZ Conforms to MSS-SP 110 - Replaces us. FED.Spec. WWW-V-35B, Type II, Class A, Style 3
