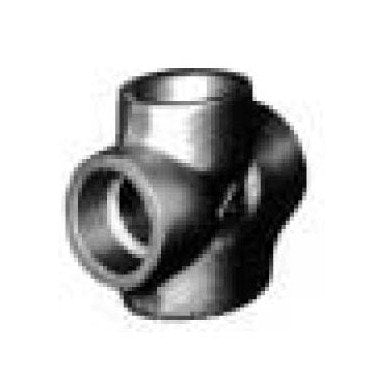

Heavy-Duty Forged Steel Crosses - Class 3000 Socket-Weld, NPS 1 1/2 (DN 40)
Heavy-Duty Forged Steel Crosses - Class 3000 Socket-Weld, NPS 1 1/2 (DN 40)
SKU:FIT-fc96c0
Enhance your piping system with Heavy-Duty Forged Steel Crosses, Class 3000 Socket-Weld, NPS 1 1/2 - ideal for secure and reliable connections.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Heavy-Duty Forged Steel Crosses - Class 3000 Socket-Weld, NPS 1 1/2 (DN 40)
$399.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Forged Steel Crosses - Class 3000 Socket-Weld, NPS 1 1/2 (DN 40)
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your piping system with our Heavy-Duty Forged Steel Crosses designed for Class 3000 Socket-Weld fittings. With precision Socket Diameter of 49 mm and Bore Diameter of 40 mm to 42 mm, these crosses ensure secure connections. The durable construction, with a Minimum Socket Depth of 13 mm, guarantees long-term performance. Weighing 119 kg per 100 pieces, these crosses provide strength and reliability for industrial settings, meeting stringent quality standards.
Product Specifications

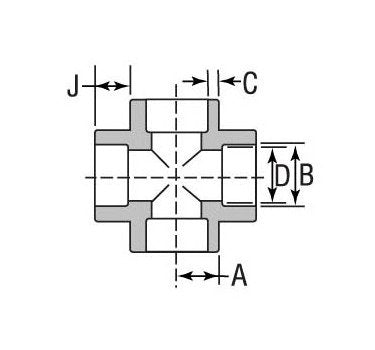

Specifications Bore Diameter D
40 mm | 42 mm
Specifications Dimension A
32.00 mm
Specifications Dimension C Min
6 mm
Specifications Dn
40
Specifications Minimum Socket Depth J
13 mm
Specifications Nps
1 1/2
Specifications Socket Diameter B
49 mm
Specifications Weight100 Pieces
119 kg
