Heavy-duty Forged Steel Pipe Caps
Heavy-duty Forged Steel Pipe Caps
SKU:FIT-489b26
Get top-quality Forged Steel Pipe Caps for Class 3000 Socket-Weld fittings. Reliable, durable, and built to last in high-pressure environments.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
Heavy-duty Forged Steel Pipe Caps
$199.99
Quantity: 1
Claim Your Seller Account
Heavy-duty Forged Steel Pipe Caps
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

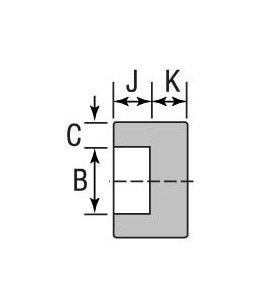

Our Heavy-duty Forged Steel Pipe Caps in NPS 2 1/2 (DN 65) are expertly designed to withstand high pressure and temperature environments. With precise Socket Diameter B of 74mm, these caps ensure secure fittings. Featuring a robust Bore Diameter D of 61mm | 64mm, they offer exceptional durability. The Minimum Socket Depth J of 16mm and Dimension K of 16mm (Min.) guarantee a snug and reliable fit. Each set of 100 pieces weighs 127kg, providing long-lasting performance for industrial applications.
Product Specifications
Specifications Bore Diameter D
61 mm | 64 mm
Specifications Dimension C Min
8 mm
Specifications Dimension K Min
16 mm
Specifications Dn
65
Specifications Minimum Socket Depth J
16 mm
Specifications Nps
2 1/2
Specifications Socket Diameter B
74 mm
Specifications Weight100 Pieces
127 kg
