Heavy-Duty Forged Steel Unions - Class 3000, 1/4 NPS
Heavy-Duty Forged Steel Unions - Class 3000, 1/4 NPS
SKU:FIT-7b0d3a
Heavy-Duty Forged Steel Union - Reliable, Leak-Free, Class 3000
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Heavy-Duty Forged Steel Unions - Class 3000, 1/4 NPS
$29.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Forged Steel Unions - Class 3000, 1/4 NPS
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Our Forged Steel Union is a robust fitting designed for reliable performance in high-pressure systems. With Class 3000 rating, it offers exceptional durability and leak-free connections. The Socket-Weld or Threaded options provide versatility for different installation needs. Precision-engineered to meet stringent quality standards, this union ensures secure and efficient piping solutions for industrial applications.
Ready to Grow Without Cash Flow Constraints?

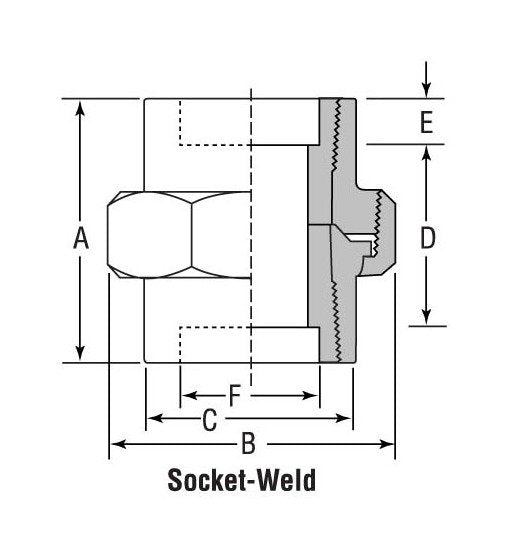

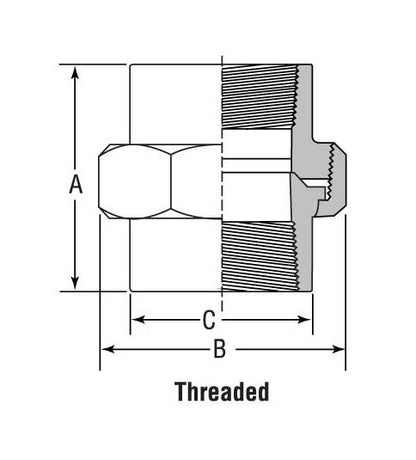

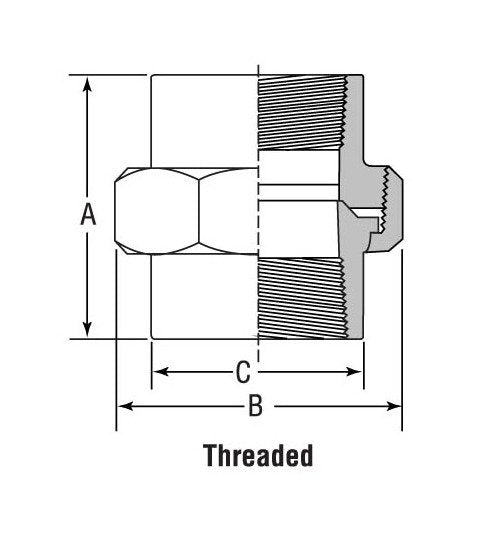

Product Specifications
Specifications Class
3000
Specifications Connection Type
Socket-Weld | Threaded
Specifications Dimension A
43.00 mm
Specifications Dimension B
38.00 mm
Specifications Dimension C
21 mm
Specifications Dimension D
20.00 mm
Specifications Dimension E
11.00 mm
Specifications Dimension F
14.00 mm | 15.00 mm
Specifications Dn
8
Specifications Nps
1/4
Specifications Weight
0.16 kg
