Heavy-Duty Forged Steel Unions - Class 3000, 3/4" NPS
Heavy-Duty Forged Steel Unions - Class 3000, 3/4" NPS
SKU:FIT-563212
Heavy-Duty Forged Steel Unions - Class 3000, 3/4" NPS. Durable, precise fittings meeting federal procurement standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Heavy-Duty Forged Steel Unions - Class 3000, 3/4" NPS
$29.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Forged Steel Unions - Class 3000, 3/4" NPS
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Our Heavy-Duty Forged Steel Unions, designed for industrial applications, feature Class 3000 strength and a durable construction. With a Socket-Weld | Threaded connection type and precise dimensions, these unions ensure secure, leak-free fittings. Meeting federal procurement standards and industry certifications, these unions offer reliability and compliance for government and institutional use.
Product Specifications
Specifications Class
3000
Specifications Connection Type
Socket-Weld | Threaded

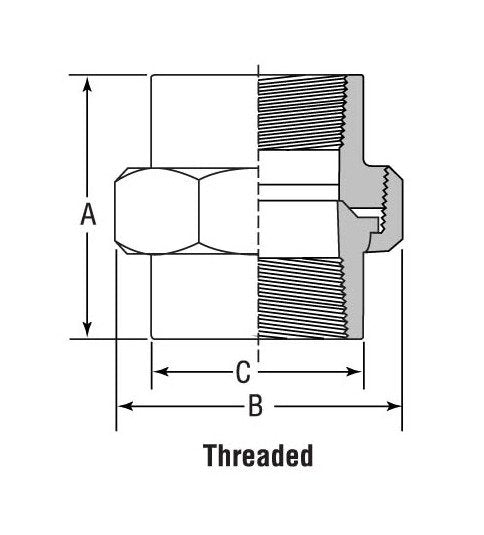

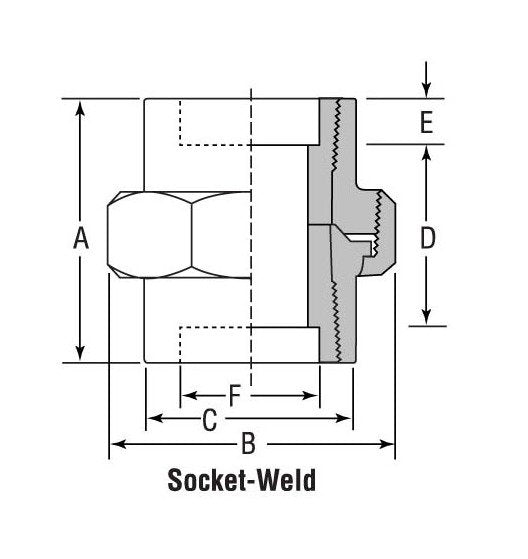

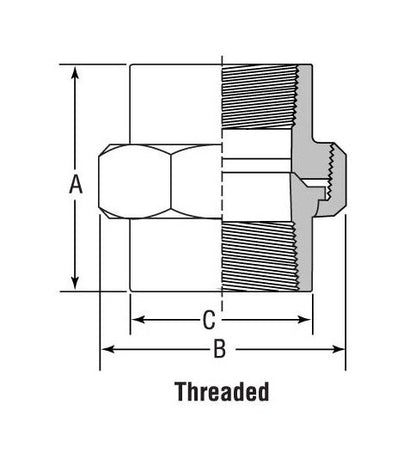

Specifications Dimension A
59.00 mm
Specifications Dimension B
60.00 mm
Specifications Dimension C
37 mm
Specifications Dimension D
29.00 mm
Specifications Dimension E
14.00 mm
Specifications Dimension F
27.00 mm | 28.00 mm
Specifications Dn
20
Specifications Nps
3/4
Specifications Weight
0.53 kg
