Heavy-Duty Galvanized Regular Nut Eye Bolt - Import, 1' x 6'

Name: Heavy-Duty Galvanized Regular Nut Eye Bolt - Import, 1' x 6'
Brand: Lexco Cable Manufacturing
SKU: WIR-436a0f
Price: 349.99 USD
Availability: OutOfStock

SKU:WIR-436a0f

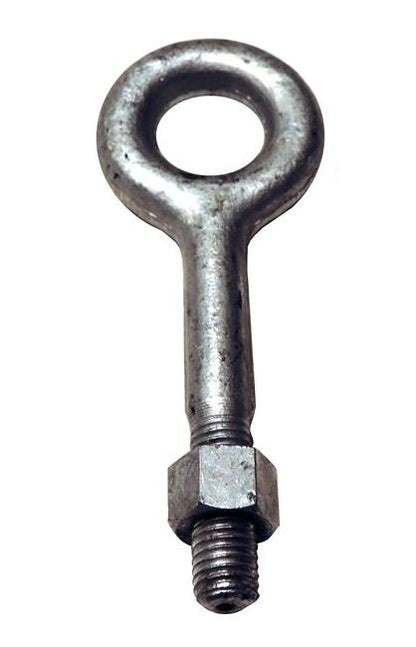

Heavy-Duty Galvanized Regular Nut Eye Bolt - High Load Capacity & Durability

$349.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

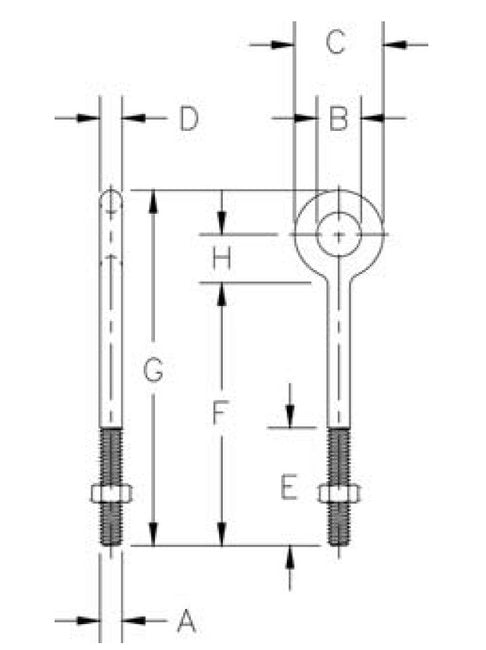

The Heavy-Duty Galvanized Regular Nut Eye Bolt is forged from quenched and tempered steel, offering exceptional strength and durability. With an ultimate load 5 times the working load limit of 10,000 lbs, this eye bolt ensures reliable performance. Designed for easy attachment to cable assemblies, it features precise dimensions (A: 1.00, B: 2.00, C: 4.00, D: 1.00, E: 3.00, F: 6.00, G: 10.31, H: 2.31) and a weight of 421 lbs/100 pcs.

Product Specifications

Specifications A

1.00

Specifications B

2.00

Specifications C

4.00

Specifications D

1.00

Specifications E

3.00

Specifications F

6.00

Specifications G

10.31

Specifications H

2.31

Specifications Shank Dia Length In

1 x 6

Specifications Wll Lbs

10000

Specifications Wt100 Pcs Lbs

421.00

CAGE

0T9L4

NAICS

332722

PSC

5306
