Heavy Duty Galvanized Turnbuckles Jaw & Eye - 5/8 x 12
Heavy Duty Galvanized Turnbuckles Jaw & Eye - 5/8 x 12
SKU:WIR-e1d580
Premium Galvanized Turnbuckles Jaw & Eye - Built to Federal Spec FF-T-791b - Heavy Duty & Reliable
Regular price
$54.99
Regular price
Sale price
$54.99
Unit price
per
Initiate Order
Heavy Duty Galvanized Turnbuckles Jaw & Eye - 5/8 x 12
$54.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Galvanized Turnbuckles Jaw & Eye - 5/8 x 12
$54.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

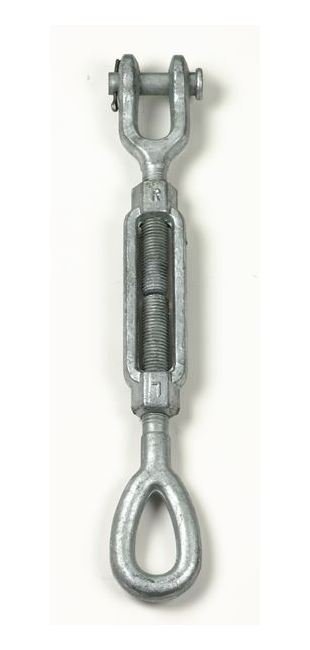

The Hot Dip Galvanized Drop Forged Turnbuckles Jaw & Eye are built to meet stringent Federal Specification FF-T-791b, Type 1, Form 1 - Class 8 standards, ensuring exceptional durability and reliability. With quenched and tempered end fittings, normalized bodies, and a proof load capacity of 2.5 times the working load limit, these turnbuckles guarantee superior performance. The ultimate load capacity of 5 times the working load limit provides added safety margin. Ideal for heavy-duty applications, these turnbuckles boast precise dimensions and are designed for secure wire rope connections.

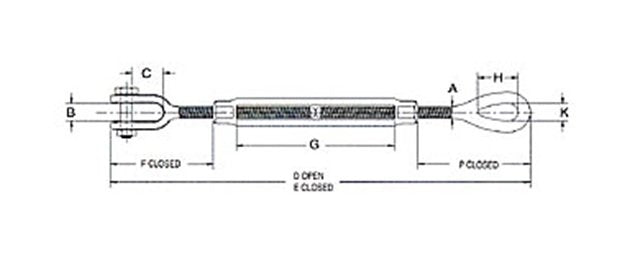

Product Specifications
Specifications A
0.63
Specifications B
0.75
Specifications C Closed
1.31
Specifications D Open
33.28
Specifications E Closed
21.28
Specifications F
3.5
Specifications G
12
Specifications H
1.75
Specifications K
0.88
Specifications Pin Diameter In
1/2
Specifications P Closed
3.9
Specifications Thread Dia Take Up In
5/8 x 12
Specifications Weight
3.78
Specifications Wll Lbs
3,500
