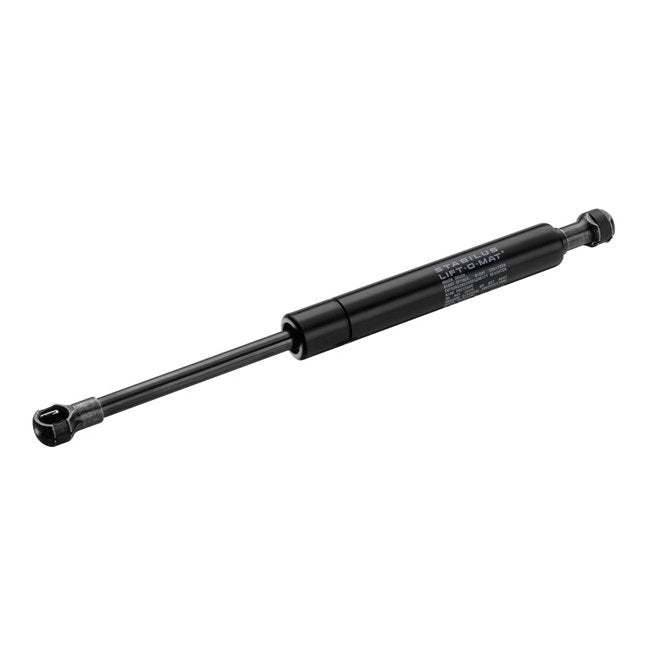

Heavy-Duty Gas Springs for Controlled Motion - Lift-O-Mat Non-Locking Gas Springs
Heavy-Duty Gas Springs for Controlled Motion - Lift-O-Mat Non-Locking Gas Springs
SKU:GAS-01535f
Precise controlled motion with Lift-O-Mat Non-Locking Gas Springs. Easy to install, maintenance-free, versatile sizes & forces.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Heavy-Duty Gas Springs for Controlled Motion - Lift-O-Mat Non-Locking Gas Springs
$89.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Gas Springs for Controlled Motion - Lift-O-Mat Non-Locking Gas Springs
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience precise control in lifting, lowering, and supporting applications with our Lift-O-Mat Non-Locking Gas Springs. These gas springs are easy to install, maintenance-free, and offer a wide range of sizes, forces, and travel lengths. With extended lengths from 7.68'' to 34.84'', output forces from 50 N to 1150 N, various end fittings, and low carbon/stainless steel construction, our gas springs are versatile and reliable. Ideal for doors, lids, hatches, and furniture in medical, transportation, and machine construction industries.
Product Specifications
Specifications Alternate Pn
FCN22V
Specifications Compressed Length Mm
312
Specifications Compressed Length Mm Range
301-350
Specifications End Fitting
Metal Ball and Socket (13mm)
Specifications Extended Length Mm
512
Specifications Extended Length Mm Range
501-550
Specifications Notes
Lift-O-Mat gas springs are ideal in applications that require lifting, lowering, moving, supporting, and adjusting. The combination of weight compensation and force support offer the perfect solution for lids, hatches, and doors. | We provide design assistance using our simulation program to help you design the right gas spring for your application. We can offer guidance in all areas, from improvements of existing products to completely new product development. Mounting points and h
Specifications Output Force Newtons
1000
Specifications Output Force Newtons Range
951-1000
Specifications Product Guides
Gas Spring's Guides
Specifications Rod Diameter Mm
10
Specifications Rod Finish
NiSlide
Specifications Travelstroke Mm
200
Specifications Travelstroke Range
176-200
Specifications Tube Diameter Mm
18
Specifications Tube Finish
Black Powder Coat
