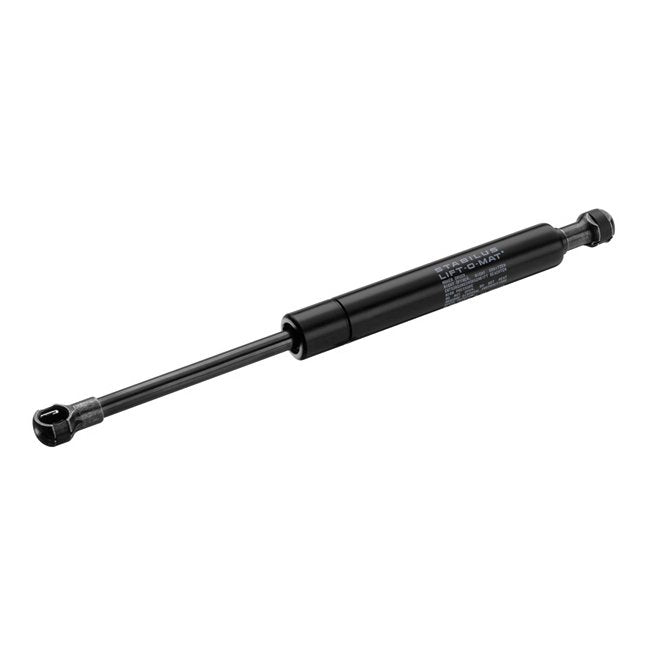

Heavy-Duty Gas Springs - Non-Locking for Controlled Motion
Heavy-Duty Gas Springs - Non-Locking for Controlled Motion
SKU:GAS-e6b0be
Enhance operations with Heavy-Duty Non-Locking Gas Springs for precise lifting and lowering. Maintenance-free with versatile mounting options.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Heavy-Duty Gas Springs - Non-Locking for Controlled Motion
$39.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Gas Springs - Non-Locking for Controlled Motion
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your application with our Heavy-Duty Gas Springs - Non-Locking, designed to deliver precise controlled motion for lifting, lowering, and supporting operations. Crafted from durable low carbon or stainless steel, these maintenance-free gas springs offer a wide range of sizes, forces, and travel lengths to suit various needs. With output forces ranging from 50 to 1150 Newtons, and extended lengths from 7.68" to 34.84", our gas springs are perfect for doors, lids, hatches, and furniture applications in medical, transportation, and machine construction industries. The included metal ball and socket end fittings with corresponding mounting hardware ensure versatility and ease of installation.
Product Specifications
Specifications Alternate Pn
FAN22P
Specifications Compressed Length Mm
409
Specifications Compressed Length Mm Range
401-450
Specifications End Fitting
Metal Ball and Socket
Specifications Extended Length Mm
669
Specifications Extended Length Mm Range
651-700
Specifications Notes
Lift-O-Mat gas springs are ideal in applications that require lifting, lowering, moving, supporting, and adjusting. The combination of weight compensation and force support offer the perfect solution for lids, hatches, and doors. | We provide design assistance using our simulation program to help you design the right gas spring for your application. We can offer guidance in all areas, from improvements of existing products to completely new product development. Mounting points and h
Specifications Output Force Newtons
680
Specifications Output Force Newtons Range
651-700
Specifications Product Guides
Gas Spring's Guides
Specifications Rod Diameter Mm
10
Specifications Rod Finish
NiSlide
Specifications Travelstroke Mm
260
Specifications Travelstroke Range
251-275
Specifications Tube Diameter Mm
22
Specifications Tube Finish
Black Powder Coat
