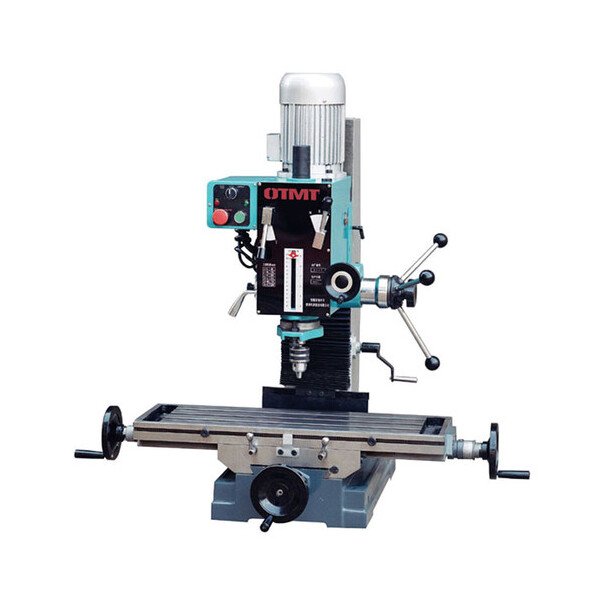

The OTMT Gear Drive Mill/Drill Machine OT7045FG is a powerhouse designed for fabrication shops, mold-making businesses, and maintenance departments. With a robust 1 HP motor and gear-driven design, this machine offers exceptional power and precision for milling, drilling, engraving, tapping, and angling tasks. Featuring a sturdy square column for added rigidity, an R8 spindle taper for versatile tool compatibility, and a spacious work table, this machine ensures efficiency and accuracy in various industrial applications.
Product Specifications
Features Features

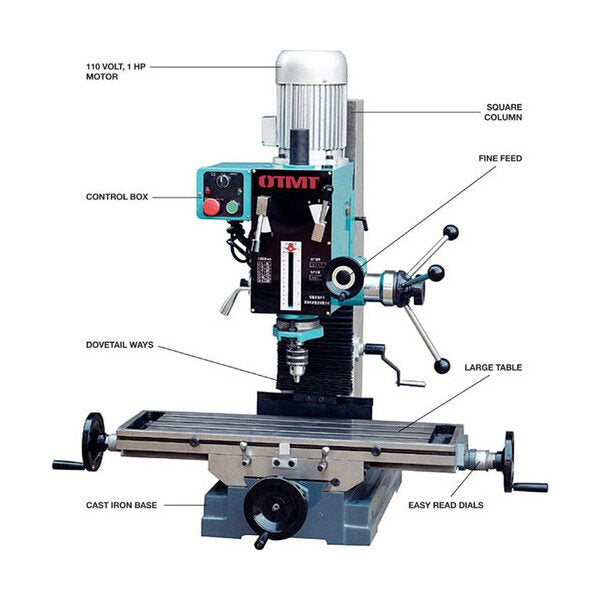

R8 spindle taper.Pre-wired for worklight.Square column.
Technical Specs Brands
OTMT
Technical Specs Country Of Origin
Import
Technical Specs Distance From Spindle Nose To Table
680 mm
Technical Specs End Milling Capacity
1.10 in | 28 mm
Technical Specs Face Milling Capacity
3.15 in | 80 mm
Technical Specs Horsepower
1 hp
Technical Specs Length
33 in
Technical Specs Machine Type
Mill/Drill
Technical Specs Minimum Distance From Spindle Axis Top Column
10.24 in | 260 mm
Technical Specs Model
OT7045FG
Technical Specs Mt3 Distance From Spindle Nose To Table
26.77 in
Technical Specs Must Buy
1
Technical Specs Power Engine
1 hp
Technical Specs Shipping Restrictions
Truck Ship Only
Technical Specs Spindle Speed Range
80 to 1250 rpm
Technical Specs Spindle Taper
R8
Technical Specs Spindle Travel
5.11 in | 130 mm
Technical Specs Stand Height
27.56 in
Technical Specs Stand Length
25.19 in
Technical Specs Stand Width
16.54 in
Technical Specs Step Of Spindle
6
Technical Specs Travel Of Table Forward Backward
6.89 in | 175 mm
Technical Specs Travel Of Table Right Left
20 in | 500 mm
Technical Specs Unit Of Measure
Each
Technical Specs Weight
790 lb
Technical Specs Width
42 in
