Heavy-Duty Grade 316 Stainless Steel Custom Eye Bolt with UNC Thread
Heavy-Duty Grade 316 Stainless Steel Custom Eye Bolt with UNC Thread
SKU:STA-dfd38f
Heavy-Duty Grade 316 Stainless Steel Custom Eye Bolt for secure fastening in varied applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Heavy-Duty Grade 316 Stainless Steel Custom Eye Bolt with UNC Thread
$24.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Grade 316 Stainless Steel Custom Eye Bolt with UNC Thread
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

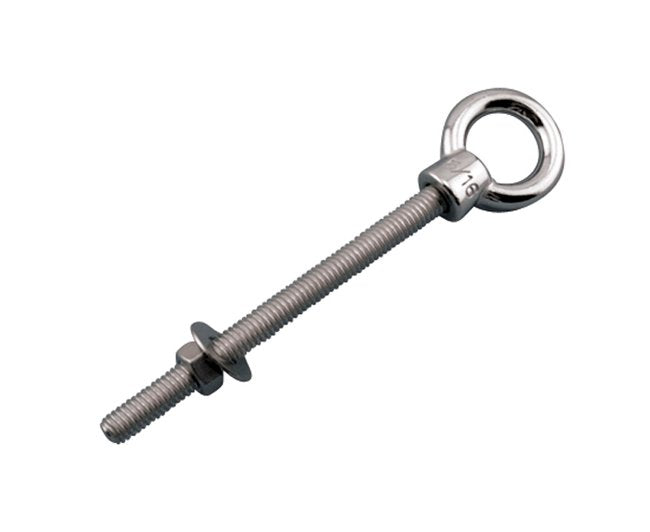

The Heavy-Duty Grade 316 Stainless Steel Custom Eye Bolt is a reliable and durable fastening solution welded with precision. This custom eye bolt, ideal for both consumer and institutional applications, features a fully threaded rod securely welded into an eye nut for enhanced strength. Crafted from grade 316 stainless steel, it ensures superior corrosion resistance, making it suitable for demanding environments. With a working load limit of 700 lb, customizable dimensions, and precision fabrication, this eye bolt meets the stringent requirements of government & institutional procurements.

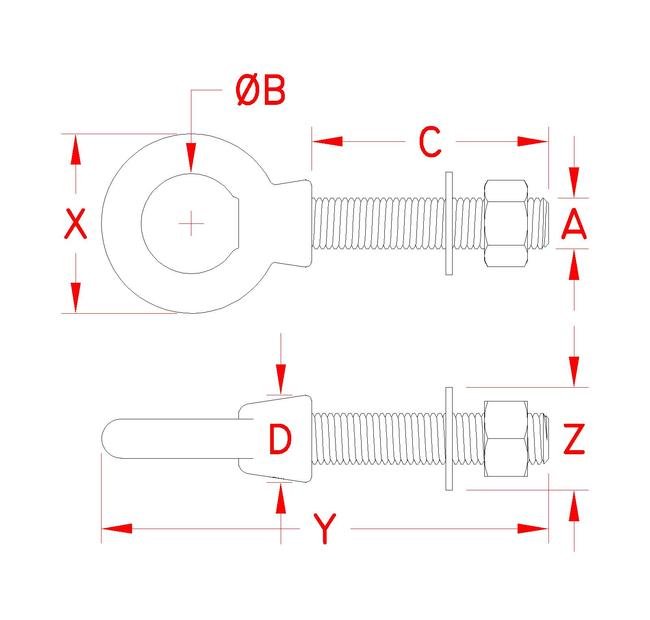

Product Specifications
Specifications Dimension A
5/16 in
Specifications Dimension B
0.75 in
Specifications Dimension C
Custom
Specifications Dimension D
0.62 in
Specifications Dimension X
1.30 in
Specifications Dimension Y
Custom
Specifications Dimension Z
0.50 in
Specifications Fabrication Type
Precision Cast | Precision Machined
Specifications Made In
Made in USA
Specifications Material
316 Stainless Steel
Specifications Working Load Limit Wll
700 lb
CAGE
1CXX6
NAICS
332722
PSC
5306
