Heavy Duty Grade 316 Stainless Steel Rigging Toggle with Removable Clevis Pin
Heavy Duty Grade 316 Stainless Steel Rigging Toggle with Removable Clevis Pin
SKU:RIG-3cee2f
Premium Heavy Duty Stainless Steel Rigging Toggle for marine applications, sizes from 1/4" to 5/8", WLL 3500 lb
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

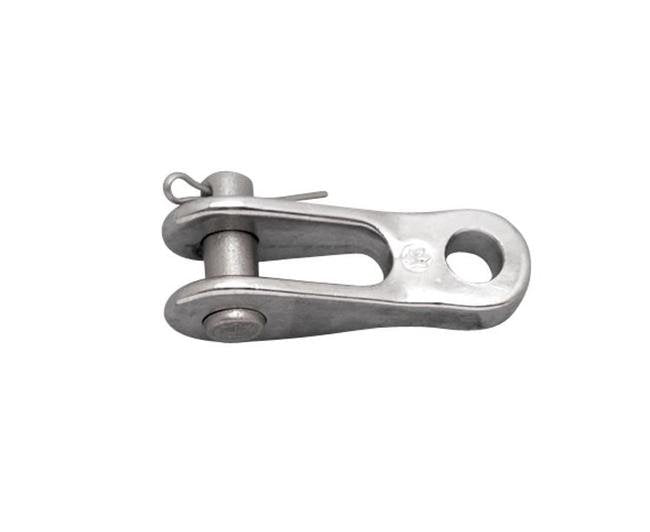

The Heavy Duty Grade 316 Stainless Steel Rigging Toggle is a reliable solution available in sizes ranging from 1/4" to 5/8". Featuring a removable clevis pin, this toggle ensures easy installation and maintenance. Crafted from precision cast 316 stainless steel, it offers maximum corrosion resistance, durability, and a Working Load Limit (WLL) of 3500 lb. Ideal for marine applications, this toggle excels where jaw turnbuckles face misalignment challenges, ensuring secure rigging operations.
Product Specifications
Specifications Dimension A
5/8 in
Specifications Dimension B
0.63 in
Specifications Dimension C
0.63 in
Specifications Dimension D
2.60 in
Specifications Dimension E
1.33 in
Specifications Dimension F
0.62 in
Specifications Dimension X
1.77 in
Specifications Dimension Y
4.07 in
Specifications Dimension Z
1.36 in
Specifications Fabrication Type
Precision Cast
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Weight
0.84 lb
Specifications Working Load Limit Wll
3500 lb
CAGE
1CXX6
NAICS
332510
PSC
2040
