Heavy-Duty Hand Crimp Tool 1/4" & 5/16"

Name: Heavy-Duty Hand Crimp Tool 1/4" & 5/16"
Brand: Lexco Cable Manufacturing
SKU: WIR-c8dfff
Price: 179.99 USD
Availability: OutOfStock

SKU:WIR-c8dfff

Portable and robust hand swager for wire rope rigging, crimps 1/4" & 5/16" sleeves/stops with ease.

$179.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

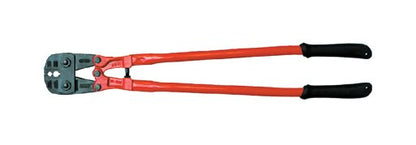

The Heavy-Duty Hand Crimp Tool 1/4" & 5/16" is a robust and versatile hand swager designed for portable wire rope rigging applications. With the ability to crimp 1/4" and 5/16" aluminum/copper sleeves and stops, this tool provides secure and reliable connections. It features a 40" overall length, making it easy to maneuver, and weighs 7.5 kg (16.54 lbs) for stability during crimping tasks. This tool does not have an inbuilt cutting function, focusing solely on efficient crimping operations.

Product Specifications

Specifications Crimp Sleeve Compatibility

#38FRS | 1/4" & 5/16" aluminum/copper sleeves & stops

Specifications Hand Swager Diameter

1/4 " | 5/16 " | 6 mm | 8 mm

Specifications Net Weight

7.5 kg | 16.54 lb

Specifications Overall Length

40 " | 1010 mm

Specifications Video Demonstration

https://www.youtube.com/watch?v=hpwyXnQtc58&t=3s

CAGE

0T9L4

NAICS

333991

PSC

5110

Heavy-Duty Hand Crimp Tool 1/4" & 5/16"
