Heavy-Duty Hand-Geared & Push Type End Truck Kits
Heavy-Duty Hand-Geared & Push Type End Truck Kits
SKU:REL-8eae46
Enhance your crane system with durable Hand-Geared & Push Type Truck Kits. Reliable, quiet operation for optimized performance.
Regular price
$1,799.99
Regular price
Sale price
$1,799.99
Unit price
per
Initiate Order
Heavy-Duty Hand-Geared & Push Type End Truck Kits
$1,799.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Hand-Geared & Push Type End Truck Kits
$1,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

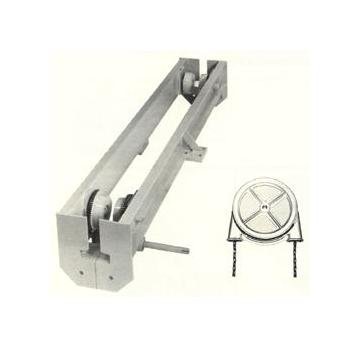

Upgrade your overhead crane system with our Heavy-Duty Hand-Geared & Push Type End Truck Kits. Crafted with precision alloy carbon steel wheel gearing and large pitch diameter pinion gears, these kits ensure long-lasting, quiet operation. The hand wheel drive features a large diameter pocket wheel for easy operation, complemented by heavy-duty cam follower bearings for smooth crane movement. The steel channel truck frames with axle reinforcement offer sturdy support. With a capacity of 5 tons and compliance with stringent industry standards, these kits are ideal for reliable overhead crane use.
Product Specifications
Specifications Adjustable For Standard Beam Sizes
S10 to S18 x 54.7
Specifications Capacity
5 Tons
Specifications Crane Wheel Diameter
5 inches
Specifications Hand Wheel Diameter
11 inches
Specifications Max Wheel Load Per Pair
7000 lbs.
Specifications Model
Model UCP and UCG Crane Kits
Specifications Net Weight Per Pair
485 lbs.
Specifications Wheel Base
5'-0"
Standard Features 0
Wheel Gearing : Alloy carbon steel precision machine cut, sized and proportioned with large pitch diameter pinion gears having generous face width for long life and quiet operation. Pinion gears are supported between self-aligning lubricated and sealed ball bearing pillow blocks - no overhung gearing. Hand Wheel Ddive : Large diameter pocket wheel for ease of operation complete with chain guard and sufficient alloy hand chain for a standard 8'-0" operating hand chain drop. Side Roller Guidance : Heavy duty cam follower bearing's provide smooth non-skewing crane operation plus reduced crane wheel and runway rail wear. Side roller setting requires 1/4" plus or minus runway rail alignment to insure smooth crane operation. Truck Frames : Fabricated from steel channel shapes with heavy axle reinforcement bosses, precision drilled bridge girder connection pads and protective front plates with rail safety lugs all jig assembled to insure accurate wheel alignment for true running operation. Split truck design allows quick easy crane erection on either open end or closed end runway systems. Hand Geared UCG : All parts shown are furnished. Push Type UCP : All plain wheels - no gearing. Complete dimensional data furnished upon request and with each order.
