Heavy-Duty Hand Geared & Push Type End Truck Kits
Heavy-Duty Hand Geared & Push Type End Truck Kits
SKU:REL-22c2de
Upgrade your cranes with durable Hand Geared & Push Type End Truck Kits for smooth, quiet, and reliable operation.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
Heavy-Duty Hand Geared & Push Type End Truck Kits
$2,499.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Hand Geared & Push Type End Truck Kits
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

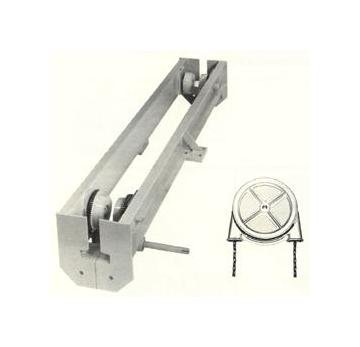

Upgrade your overhead cranes with our Heavy-Duty Hand Geared and Push Type End Truck Kits. Crafted with precision using alloy carbon steel, these kits are designed for durability and quiet operation. Features include large pitch diameter pinion gears, self-aligning lubricated ball bearings, and a large diameter hand wheel for easy operation. The steel channel truck frames are equipped with protective front plates and rail safety lugs for added safety and accurate wheel alignment. These kits are suitable for 10-ton capacity with a max. wheel load of 14,000 lbs. Ensure smooth crane operation and easy erection with our reliable end truck kits.
Product Specifications
Specifications Adjustable For Standard Beam Sizes
S12 to S20 x 65.4
Specifications Capacity
10 Tons
Specifications Crane Wheel Diameter
6 1/2 inches
Specifications Hand Wheel Diameter
14 inches
Specifications Max Wheel Load Per Pair
14000 lbs.
Specifications Model
Model UCP and UCG Crane Kits
Specifications Net Weight Per Pair
755 lbs.
Specifications Wheel Base
5'-0"
Standard Features 0
Wheel Gearing : Alloy carbon steel precision machine cut, sized and proportioned with large pitch diameter pinion gears having generous face width for long life and quiet operation. Pinion gears are supported between self-aligning lubricated and sealed ball bearing pillow blocks - no overhung gearing. Hand Wheel Ddive : Large diameter pocket wheel for ease of operation complete with chain guard and sufficient alloy hand chain for a standard 8'-0" operating hand chain drop. Side Roller Guidance : Heavy duty cam follower bearing's provide smooth non-skewing crane operation plus reduced crane wheel and runway rail wear. Side roller setting requires 1/4" plus or minus runway rail alignment to insure smooth crane operation. Truck Frames : Fabricated from steel channel shapes with heavy axle reinforcement bosses, precision drilled bridge girder connection pads and protective front plates with rail safety lugs all jig assembled to insure accurate wheel alignment for true running operation. Split truck design allows quick easy crane erection on either open end or closed end runway systems. Hand Geared UCG : All parts shown are furnished. Push Type UCP : All plain wheels - no gearing. Complete dimensional data furnished upon request and with each order.
