Heavy-Duty Hand Geared & Push-Type End Truck Kits - 2 Ton Capacity
Heavy-Duty Hand Geared & Push-Type End Truck Kits - 2 Ton Capacity
SKU:REL-98b506
Upgrade your crane system with our durable End Truck Kits for reliable and efficient operation.
Regular price
$1,599.99
Regular price
Sale price
$1,599.99
Unit price
per
Initiate Order
Heavy-Duty Hand Geared & Push-Type End Truck Kits - 2 Ton Capacity
$1,599.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Hand Geared & Push-Type End Truck Kits - 2 Ton Capacity
$1,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your overhead crane system with these premium Hand Geared and Push Type End Truck Kits. Crafted with precision-cut alloy carbon steel wheel gearing and large diameter hand wheels, these kits ensure long-lasting, quiet operation. The heavy-duty cam follower bearings offer smooth crane operation and reduced wear. Fabricated from steel channel shapes with reinforced bosses, these kits guarantee accurate wheel alignment for optimal performance. The versatile split truck design allows quick and easy crane erection on various runway systems.
Product Specifications
Specifications Asce Rail Size
40
Specifications Capacity
2 Tons
Specifications Crane Wheel Diameter
6 inches
Specifications Hand Wheel Diameter
11 inches
Specifications Max Wheel Load
3500 lbs.
Specifications Model
Model TCP and TCG Crane Kits
Specifications Net Weight Per Pair
575 lbs.
Specifications Wheel Base
5'-0"
Standard Features 0

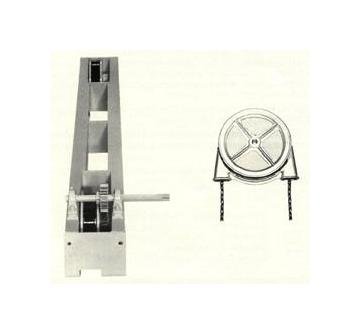

Wheel Gearing : Alloy carbon steel precision machine cut, sized and proportioned with large pitch diameter pinion gears having generous face width for long life and quiet operation. Pinion gears are supported between self-aligning lubricated and sealed ball bearing pillow blocks - no overhung gearing. Hand Wheel Ddive : Large diameter pocket wheel for ease of operation complete with chain guard and sufficient alloy hand chain for a standard 8'-0" operating hand chain drop. Side Roller Guidance : Heavy duty cam follower bearing's provide smooth non-skewing crane operation plus reduced crane wheel and runway rail wear. Side roller setting requires 1/4" plus or minus runway rail alignment to insure smooth crane operation. Truck Frames : Fabricated from steel channel shapes with heavy axle reinforcement bosses, precision drilled bridge girder connection pads and protective front plates with rail safety lugs all jig assembled to insure accurate wheel alignment for true running operation. Split truck design allows quick easy crane erection on either open end or closed end runway systems. Hand Geared UCG : All parts shown are furnished. Push Type UCP : All plain wheels - no gearing. Complete dimensional data furnished upon request and with each order.
