Heavy Duty Hand Geared & Push Type Overhead Crane End Truck Kits
Heavy Duty Hand Geared & Push Type Overhead Crane End Truck Kits
SKU:REL-038bfa
Enhance your overhead crane with durable Hand Geared & Push Type End Truck Kits for smooth and quiet operation.
Regular price
$2,999.99
Regular price
Sale price
$2,999.99
Unit price
per
Initiate Order
Heavy Duty Hand Geared & Push Type Overhead Crane End Truck Kits
$2,999.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Hand Geared & Push Type Overhead Crane End Truck Kits
$2,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

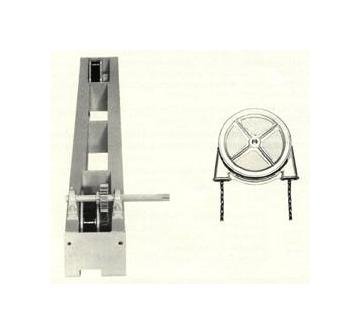

Upgrade your overhead crane system with our Heavy Duty Hand Geared & Push Type End Truck Kits. These kits feature spark-resistant models with alloy carbon steel precision machine-cut wheel gearing for durability and quiet operation. The hand wheel drive system ensures ease of operation, complemented by heavy-duty cam follower bearings for smooth crane operation. The fabricated steel truck frames provide precise wheel alignment for true running operation. With a 5-ton capacity, 8-inch crane wheel diameter, and ASCE Rail Size of 40, these kits are reliable and robust for industrial applications. Complete dimensional data is available upon request.
Product Specifications
Specifications Asce Rail Size
40
Specifications Capacity
5 Tons
Specifications Crane Wheel Diameter
8 inches
Specifications Max Wheel Load
7500 lbs.
Specifications Model
Model TCP and TCG Crane Kits
Specifications Net Weight Per Pair
600 lbs.
Specifications Wheel Base
5'-0"
Standard Features 0
Wheel Gearing : Alloy carbon steel precision machine cut, sized and proportioned with large pitch diameter pinion gears having generous face width for long life and quiet operation. Pinion gears are supported between self-aligning lubricated and sealed ball bearing pillow blocks - no overhung gearing. Hand Wheel Ddive : Large diameter pocket wheel for ease of operation complete with chain guard and sufficient alloy hand chain for a standard 8'-0" operating hand chain drop. Side Roller Guidance : Heavy duty cam follower bearing's provide smooth non-skewing crane operation plus reduced crane wheel and runway rail wear. Side roller setting requires 1/4" plus or minus runway rail alignment to insure smooth crane operation. Truck Frames : Fabricated from steel channel shapes with heavy axle reinforcement bosses, precision drilled bridge girder connection pads and protective front plates with rail safety lugs all jig assembled to insure accurate wheel alignment for true running operation. Split truck design allows quick easy crane erection on either open end or closed end runway systems. Hand Geared UCG : All parts shown are furnished. Push Type UCP : All plain wheels - no gearing. Complete dimensional data furnished upon request and with each order.
