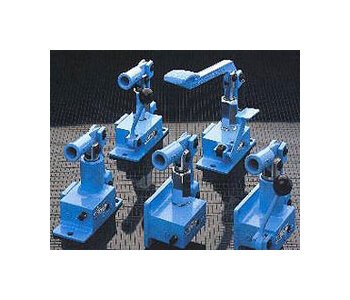

Heavy-Duty Hand Operated Hydraulic Pumps - P-PL Series

Heavy-Duty Hand Operated Hydraulic Pumps - P-PL Series

SKU:HYD-8cc73c

Robust hand-operated hydraulic pumps, with adjustable overload & manual pressure release valves, for high-pressure systems.

Regular price $497.00
Regular price Sale price $497.00
Sale

Initiate Order

Heavy-Duty Hand Operated Hydraulic Pumps - P-PL Series

Heavy-Duty Hand Operated Hydraulic Pumps - P-PL Series

$497.00

Quantity: 1

Claim Your Seller Account

Heavy-Duty Hand Operated Hydraulic Pumps - P-PL Series

Heavy-Duty Hand Operated Hydraulic Pumps - P-PL Series

$497.00

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Heavy-Duty Hand Operated Hydraulic Pumps - P-PL Series are robust and versatile manual pumps designed for use in hydraulic systems without reservoirs. These single-piston pumps, available in base or flange mount, come equipped with adjustable overload relief valves and manual pressure release valves. With a pressure capacity of up to 5,000 psi, these pumps offer precise control and reliability. Options include various release valve mechanisms, stainless steel versions for specialized applications, and customizable pressure settings. Ideal for applications requiring high-pressure hydraulic systems.

Product Specifications

Specifications Adjustable Overload Relief Valve
Yes
Specifications Body Material
Steel
Specifications Inlet Port Size Nptf
3/8
Specifications Lever Load Per 100 Psi
2.8 lb
Specifications List Price
497 USD
Specifications Manual Pressure Release Valve
Yes
Specifications Maximum Pressure Rating
5000 psi
Specifications Mounting
Flange Mounted
Specifications Net Weight
15 lb
Specifications Oil Reservoir
false
Specifications Operating Lever Size
24 in
Specifications Outlet Port Size Nptf
3/8
Specifications Piston
Hard Chrome Plated
Specifications Piston Diameter
3/4 in
Specifications Release
Screw Release
Specifications Series
P-PL
Specifications Volume Per Stroke
0.66 in³
Technical Information 0
Limited Warranty All Star pumps are covered by a limited warranty on materials and workmanship for one year from the date of manufacture. Star will repair or replace at its option any pump in which Star finds manufacturing defects. In order to get warranty service a pump must be returned to the Star plant freight prepaid with a written explanation of the problem. Technical Data Light hydraulic oil is recommended for use with Star pumps. Oils with SUS viscosity of 75 to 150 at 100 degrees Fahrenheit will give satisfactory performance (ISO grade 15, 22, or 32). In an emergency situation when the above oils are not available, use 5 W or 10 W motor oil or automatic transmission fluid. All exposed surfaces of standard Star pumps are painted with one coat of industrial quality paint. Pumps painted with special colors with two coat finishes, or with prime coat only, and pumps with special plated or polished parts, are also available.
