Heavy Duty High Cycle Base-Mounted Jib Crane - Model 400
Heavy Duty High Cycle Base-Mounted Jib Crane - Model 400
SKU:REL-3ba954
Heavy-duty base-mounted jib crane for precise load handling in high-impact operations.
Regular price
$7,499.99
Regular price
Sale price
$7,499.99
Unit price
per
Initiate Order
Heavy Duty High Cycle Base-Mounted Jib Crane - Model 400
$7,499.99
Quantity: 1
Claim Your Seller Account
Heavy Duty High Cycle Base-Mounted Jib Crane - Model 400
$7,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

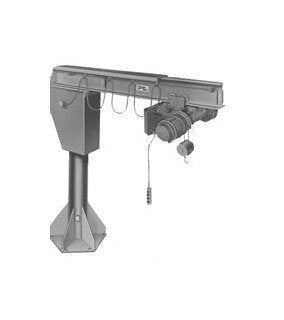

The Model 400 BPM Base Plate Mounted Jib Crane is purpose-built for heavy-duty high cycle operations with minimal deflection and superior load spotting precision. Ideal for loading precision parts, jigs, fixtures, and close tolerance assembly work, this crane ensures exceptional performance in operations with heavy impacts. Featuring precision upper head and lower roller bearings with a 10,000-hour lifespan, adjustable bottom roller assembly for boom leveling, and channel capping for enhanced lateral stability on boom lengths over 12 ft. Rigidly supported by heavy full plate gussets, it offers optional 360° rotation and motorized boom rotation for high production applications.
Product Specifications
Electrification Electrification
Bottom Entry Collector Rings | Control Conductors | Disconnect Switch | Tagline | Top Entry Collector Rings | Trolley Track
Power Supply Extra Features
Anchor Bolts | Template
Specifications Base Plate Size
56 inches

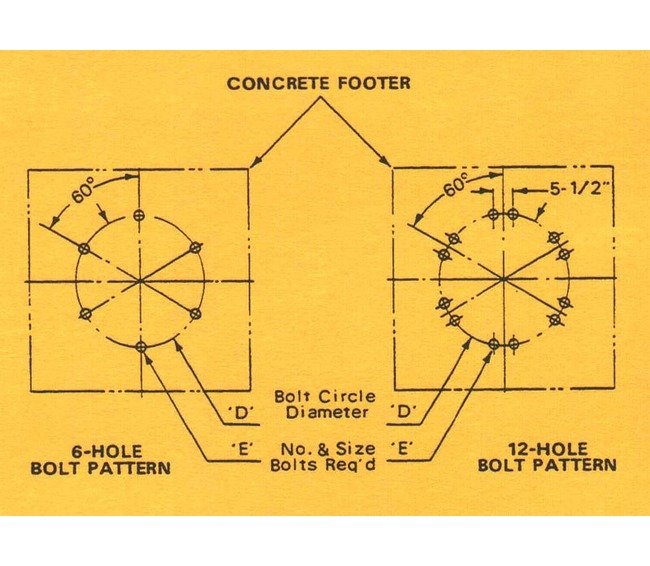

Specifications Bolt Circle Diameter D
48 inches
Specifications Bolt Diameter E
1 1/4 inches

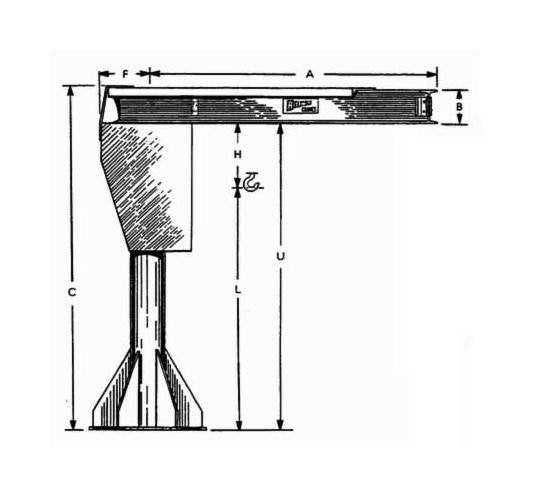

Specifications Boom Size B
20"C
Specifications Capacity
4000 lbs.
Specifications Hoist Headroom
Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use
Specifications Max Height C
17'-9"
Specifications Model
BPM | CIM | TRW | CDC | TDC | CBM | TRM
Specifications Mounting
BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted
Specifications No Of Bolts
12
Specifications Span A
20'-0"
Specifications Under Boom U
16'-0"
Specifications Usage
Heavy - Heavy Duty/High Cycle | Standard - General Purpose
Specifications Weight
5285 lbs.
