Heavy Duty Hinged Weatherproof Terminal Cabinet - H3200-T Type
Heavy Duty Hinged Weatherproof Terminal Cabinet - H3200-T Type
SKU:H32-32d638
Premium H3200-T Type Weatherproof Terminal Cabinet with cast iron construction, stainless steel hardware, and NEMA 3R/4 compliance.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Heavy Duty Hinged Weatherproof Terminal Cabinet - H3200-T Type
$499.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Hinged Weatherproof Terminal Cabinet - H3200-T Type
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

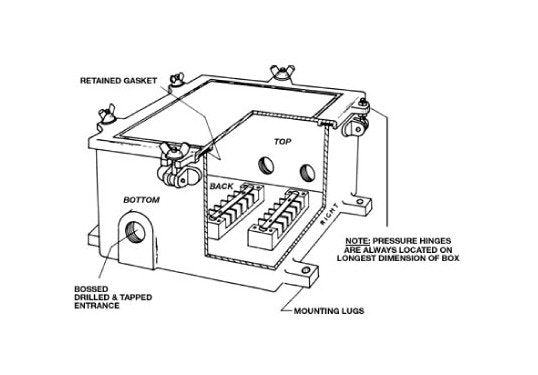

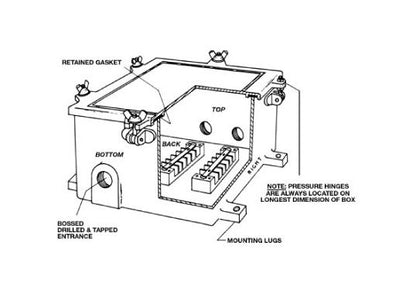

The Heavy Duty H3200-T Type Hinged Weatherproof Terminal Cabinets are meticulously constructed with cast iron and hot-dipped galvanized materials, meeting stringent NEMA 3R and NEMA IV standards for superior durability. Featuring stainless steel hardware, neoprene gasket, and four exterior mounting lugs, these cabinets provide a secure and weather-tight enclosure for terminal blocks. Each cabinet accommodates terminal blocks rated at 30 amperes and 750 volts, ensuring reliable connections with ample wiring space. With optional extras like drilling and tapping, special gaskets, and lockable hasp, these cabinets offer versatility for various installations.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Approx Weight
74 lbs
Specifications Argmnt Of Blocks Vertical Rows
ll
Specifications Block To Block
4
Specifications Construction
cast iron
Specifications Inside Depth
5 in.
Specifications Inside Length
18 in.
Specifications Inside Width
12 in.
Specifications Max Conduit
2 in.
Specifications Mounting
Surface
Specifications No Of Hinges
2
Specifications No Of Wing Nuts
4
Specifications No Of Wires
40
Specifications Stock Note
If you donât see a box size listed that you need, please inquire - we may have it. This list does not represent all of our boxes.
Specifications Third Party Certification
UL E189027
Specifications Type
H3200-T
Specifications Wall Thickness
9/32 in.
Specifications Wiring Space Block To Wall
2 in.
