Heavy Duty Hot Dip Galvanized Shoulder Nut Eye Bolts
Heavy Duty Hot Dip Galvanized Shoulder Nut Eye Bolts
SKU:WIR-d1d27e
High-strength, reliable Shoulder Nut Eye Bolts for industrial use, hot dip galvanized for durability and safety.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

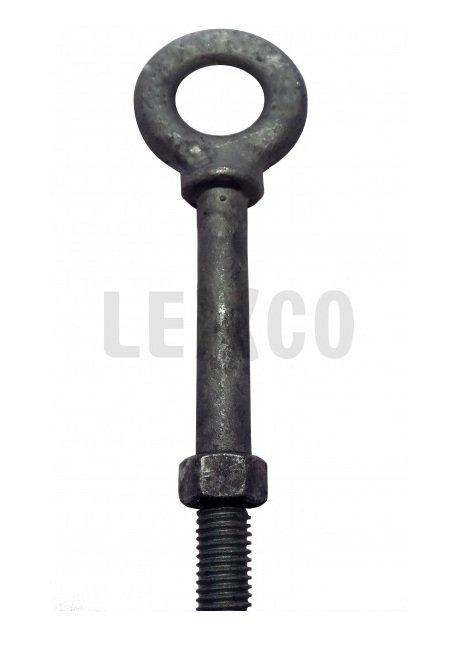

The Heavy Duty Hot Dip Galvanized Shoulder Nut Eye Bolts are crafted from forged steel, quenched, and tempered to meet the highest industry standards. With an ultimate load capacity of 5 times the working load limit, these bolts ensure exceptional reliability and safety. Designed for easy attachment to cable assemblies, they offer precision with dimensions meeting institutional procurement requirements. Ideal for industrial applications requiring strength and durability.

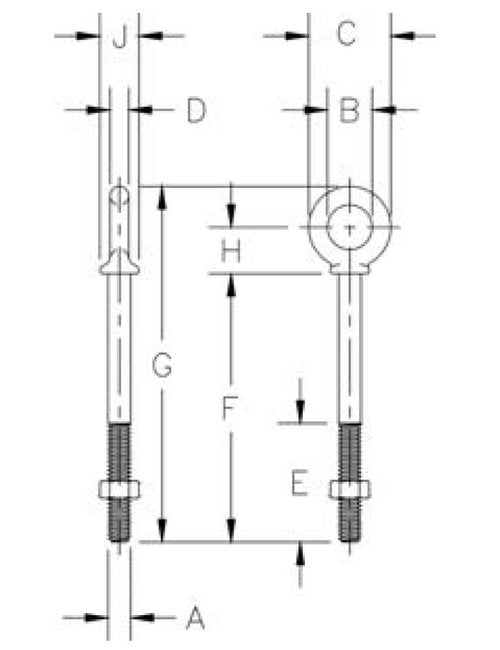

Product Specifications
Specifications A
0.88
Specifications B
1.75
Specifications C
3.50
Specifications D
0.75
Specifications E
2.50
Specifications F
5.00
Specifications G
8.46
Specifications H
1.84
Specifications J
1.56
Specifications Shank Dia Length In
7/8 x 5
Specifications Wll Lbs
7200
Specifications Wt100 Pcs Lbs
225.00
CAGE
0T9L4
NAICS
332722
PSC
5306
