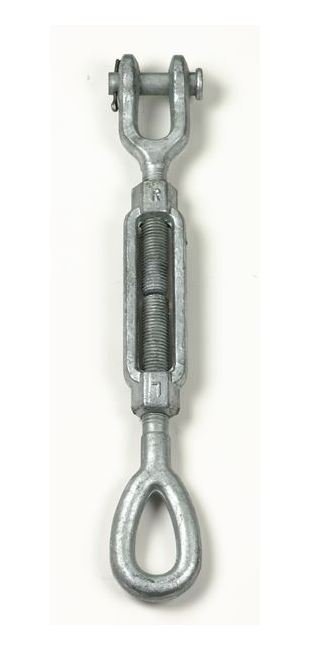

Heavy Duty Hot Dip Galvanized Turnbuckle Jaw & Eye Set

Name: Heavy Duty Hot Dip Galvanized Turnbuckle Jaw & Eye Set
Brand: Lexco Cable Manufacturing
SKU: WIR-088fe0
Price: 34.99 USD
Availability: OutOfStock

SKU:WIR-088fe0

Heavy Duty Galvanized Turnbuckle Jaw & Eye Set, Meets FF-T-791b Standards, High Load Capacity

$34.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Hot Dip Galvanized Drop Forged Turnbuckles Jaw & Eye set is designed to meet stringent federal specification FF-T-791b, Type 1, Form 1 - Class 8 standards. With quenched and tempered end fittings and normalized bodies, it ensures exceptional durability. This turnbuckle has a 2.5 times working load limit proof load and 5 times ultimate load capacity, providing reliability in demanding applications. The precise dimensions ensure a secure fit, making it ideal for wire rope tensioning and hardware applications.

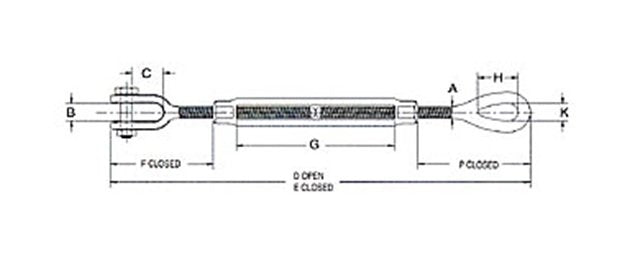

Product Specifications

Specifications A

0.5

Specifications B

0.63

Specifications C Closed

1.06

Specifications D Open

25.48

Specifications E Closed

16.48

Specifications F

2.75

Specifications G

Specifications H

1.44

Specifications K

0.72

Specifications Pin Diameter In

7/16

Specifications P Closed

3.23

Specifications Thread Dia Take Up In

1/2 x 9

Specifications Weight

1.71

Specifications Wll Lbs

2,200
