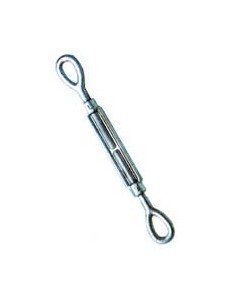

Heavy Duty Hot Dip Galvanized Turnbuckles Eye & Eye

Heavy Duty Hot Dip Galvanized Turnbuckles Eye & Eye

SKU:WIR-a62d68

Heavy-duty turnbuckles meeting Federal Spec FF-T-791b Class 4 standards. Hot dip galvanized, high safety margin, and precise dimensions.

Regular price $49.99
Regular price Sale price $49.99
Sale

Initiate Order

Heavy Duty Hot Dip Galvanized Turnbuckles Eye & Eye

Heavy Duty Hot Dip Galvanized Turnbuckles Eye & Eye

$49.99

Quantity: 1

Claim Your Seller Account

Heavy Duty Hot Dip Galvanized Turnbuckles Eye & Eye

Heavy Duty Hot Dip Galvanized Turnbuckles Eye & Eye

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Heavy Duty Hot Dip Galvanized Turnbuckles Eye & Eye are crafted to meet the stringent Federal Specification FF-T-791b, Type 1, Form 1 - Class 4 standards. These turnbuckles feature hot dip galvanization for enhanced durability, quenched and tempered end fittings, and normalized bodies. With a high safety margin, the proof load is 2.5 times the working load limit, while the ultimate load is 5 times the working load limit. Precision-engineered with dimensions conforming to industry standards, these turnbuckles are reliable and built to last.

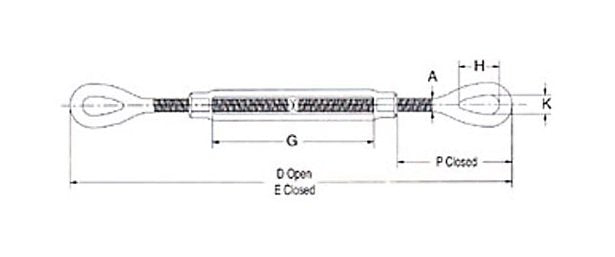

Product Specifications

Specifications A
1
Specifications D Open
51.72
Specifications E Closed
33.72
Specifications G
18
Specifications H
3
Specifications K
1.44
Specifications P Closed
6.36
Specifications Thread Dia Take Up In
1 x 18
Specifications Weight
14
Specifications Wll Lbs
10000
