The Heavy Duty HotSpot II Thermocouple Welder is a versatile capacitive discharge welder designed for forming thermocouple beads, welding thermocouples to metal surfaces, attaching hardware and small gauge studs. It can weld wire pairs as heavy as #14 gauge, close larger tubes than standard welders, and perform light duty stud welding. With easy-to-use controls and indicators, this dual range high-energy unit offers fine control and high power capability, ideal for institutional and government buyers with demanding welding needs.
Product Specifications
Accessories Accessories

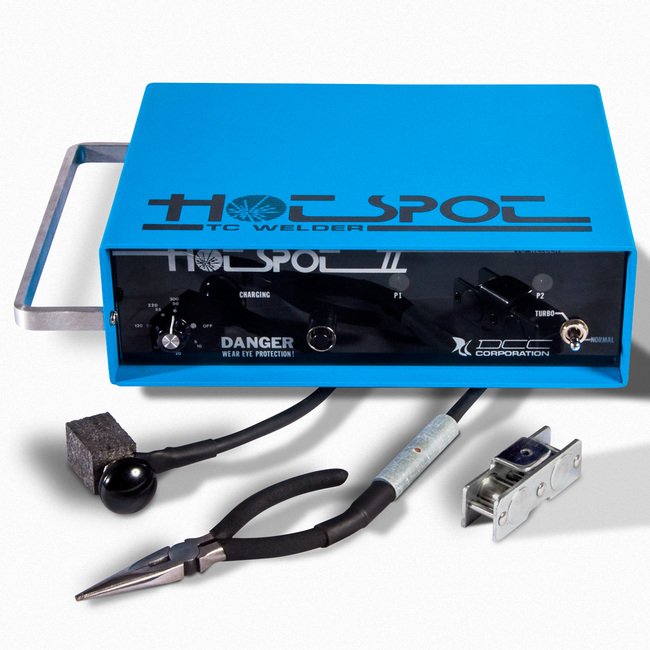

408010, Insul Pin #10; Attachment Probe | 408012, Insul Pin #12; Attachment Probe | 9012-1, Pliers, Mini
Controls Indicators And Overload Protection 0

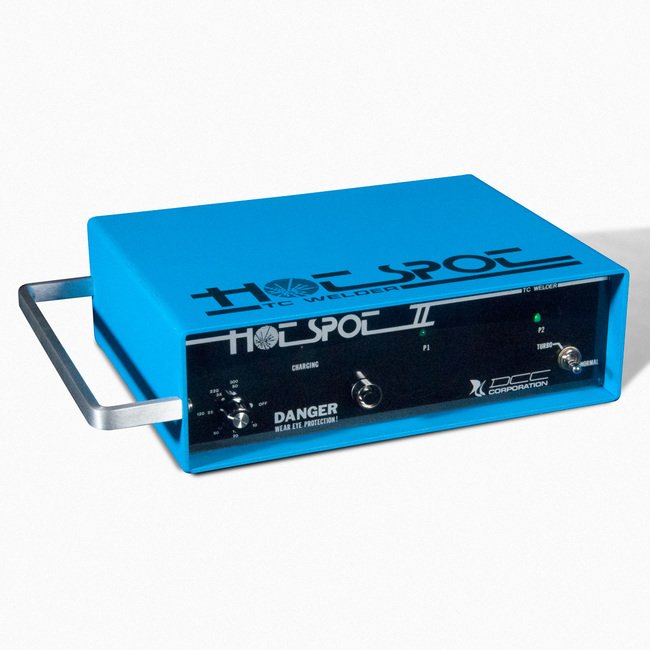

Front panel indicators and controls allow the operator to easily monitor the status of the unit, determine the level of energy to be stored, and initiate a weld cycle.The power level is set by the position of the front panel control knob.The power ranges, normal (low) and turbo (high), are selected by a two position toggle switch. Peak voltage on the low range is approximately 35 VDC and on the high range 75 VDC. Initiation of the welding discharge is controlled by a snap action push button switch.The range switch and power level control set the voltage to which the energy storage capacitors are charged. The stored energy is proportional to the square of the capacitor voltage. Increasing the setting of the control knob will cause the capacitor to be charged to a higher level. However, decreasing the setting will not immediately reduce the value already stored so a welding cycle will always release an energy pulse equal to the highest power setting since the last recent discharge.A resettable circuit breaker in the primary AC line is accessible on the unit's back panel and protects against damage from internal circuit shorts and similar fault conditions.
Description 0
The HotSpot II welder is a dual range high-energy unit that has the versatility to provide fine control as well as the high power capability needed for heavier wires. It can handle wire pairs as heavy as #14; gauge. The HotSpot II can also close larger tubes than the standard HotSpot and can do light duty stud welding as an aid in wire harness attachment and in insulation blanket installation.The HotSpot II is powered from the AC line through a step-down transformer and rectifier. Front panel indicators and controls allow the operator to easily monitor the status of the unit, determine the level of energy to be transferred to the storage capacitors, and initiate a weld cycle. The maximum power output of the HotSpot II is approximately 250 Joules. The power level is set by the position of the front panel control knob. The power ranges, normal (low) and turbo (high), are selected by a two position toggle switch. Initiation of the welding discharge is controlled by a snap action push button switch.The range switch and power level control set the voltage to which the energy storage capacitors are charged. Peak voltage on the low range is approximately 35 VDC and on the high range 75 VDC. The stored energy is proportional to the square of the capacitor voltage. Increasing the setting of the control knob will cause the capacitor to be charged to a higher level. However, decreasing the setting will not immediately reduce the value already stored so a welding cycle will always release an energy pulse equal to the highest power setting since the last recent discharge. A resettable circuit breaker in the primary AC line is accessible on the unit's back panel and protects against damage from internal circuit shorts and similar fault conditions. X
Easy To Use Easy To Use
The HotSpot II welder is a dual range high-energy unit that has the versatility to provide fine control as well as the high power capability needed for heavier wires. Front panel indicators and controls allow the operator to easily monitor the status, set the energy level, and initiate a weld cycle
Specifications Controls
Provides energy adjustment control, dual 2 position energy range switch, and LED displays to indicate charging and energy storage status.
Specifications Cycle Time
Charging time at maximum energy setting is less than 10 seconds
Specifications Depth
8.5 inches
Specifications Height
3.5 inches
Specifications List Price
1095.00 USD
Specifications Power
Uses 120 VAC 60 Hz line power (220 VAC 50 Hz optional) Circuit protected by 3 amp breaker.
Specifications Product Type
Thermocouple Welders
Specifications Stored Weld Energy
5 to 250 watt/sec
Specifications Voltage Rating
120 V | 220 V
Specifications Weight
14 lbs
Specifications Weld Capability
Welds wire pairs of #14; gauge or finer, and #8; or lighter studs
Specifications Width
11.5 inches
