Heavy Duty I Beam Auxiliary Saddle
Heavy Duty I Beam Auxiliary Saddle
SKU:CRA-28baa6
Enhance cable management with the Heavy Duty I Beam Auxiliary Saddle for secure and flexible installation in crane control systems.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Heavy Duty I Beam Auxiliary Saddle
$189.99
Quantity: 1
Claim Your Seller Account
Heavy Duty I Beam Auxiliary Saddle
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

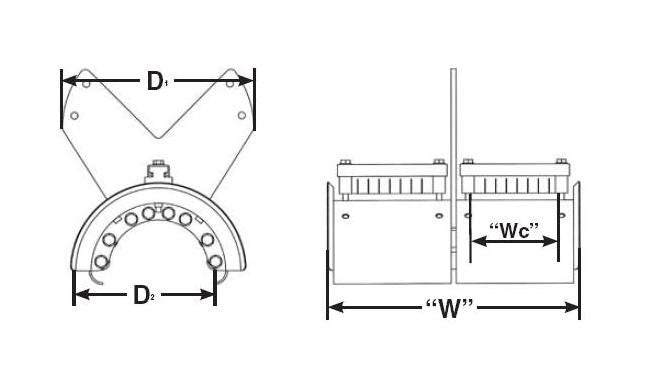

The Heavy Duty I Beam Auxiliary Saddle is a crucial accessory for applications requiring additional support for large cable packages or separation of power and control cables. Designed for use with the Series 450 Heavy Duty I Beam Festoon Systems, this double clamping bar saddle provides reliable cable management. With dimensions D1: 14 in, D2: 10 in, Wc: 6.00 in, W: 18.50 in, and weighing 32.3 lb, it offers sturdy and secure cable installation. These saddles can be ordered separately for system expansion and certain configurations may necessitate bumper extensions.
Product Specifications
Specifications Clamping Bar
Double
Specifications D1
14 in | 360 mm
Specifications D2
10 in | 260 mm
Specifications W
18.50 in | 470 mm
Specifications Wc
6.00 in | 152 mm
Specifications Weight
32.3 lb | 14.6 kg
