Heavy Duty I Beam Auxiliary Saddle
Heavy Duty I Beam Auxiliary Saddle
SKU:CRA-5ab0de
Enhance cable package support with the Heavy Duty I Beam Auxiliary Saddle for reliable cable management in heavy-duty applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Heavy Duty I Beam Auxiliary Saddle
$89.99
Quantity: 1
Claim Your Seller Account
Heavy Duty I Beam Auxiliary Saddle
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty I Beam Auxiliary Saddle is essential for applications requiring additional support for large cable packages or separation of power and control cables. Designed for Series 450 Heavy Duty I Beam Festoon Systems, this saddle with specified dimensions and weight capacity ensures optimal cable management. It allows for the addition of one or two saddles based on trolley weight limits. Easily installable on existing systems, this accessory may require bumper extensions in certain configurations.

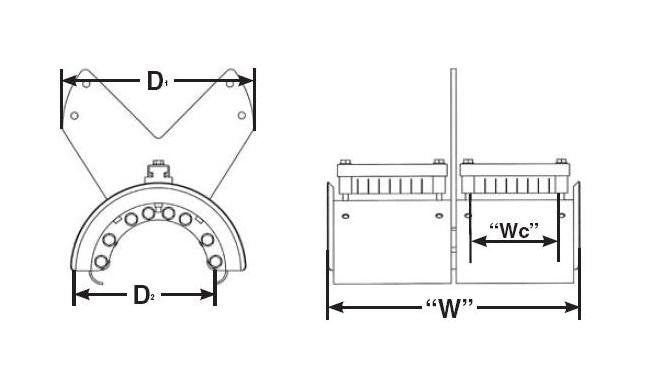

Product Specifications
Specifications Clamping Bar
Single
Specifications D1
10 in | 260 mm
Specifications D2
10 in | 260 mm
Specifications W
18.50 in | 470 mm
Specifications Wc
6.00 in | 152 mm
Specifications Weight
22.5 lb | 10.2 kg
