Heavy Duty I Beam Auxiliary Saddle
Heavy Duty I Beam Auxiliary Saddle
SKU:CRA-06d960
Enhance cable management with the Heavy Duty I Beam Auxiliary Saddle for large cable packages and cable segregation in crane control systems.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Heavy Duty I Beam Auxiliary Saddle
$149.99
Quantity: 1
Claim Your Seller Account
Heavy Duty I Beam Auxiliary Saddle
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

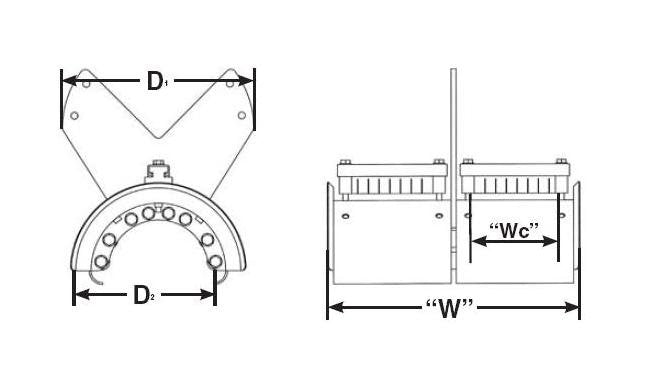

The Heavy Duty I Beam Auxiliary Saddle is a crucial component in crane control systems, designed for applications requiring additional support for large cable packages or segregation of power and control cables. Compatible with Series 450 Heavy Duty I Beam Festoon Systems, this saddle features a durable construction with a single clamping bar and dimensions of 19 in D1, 10 in D2, 12.63 in Wc, and 31.75 in W. Ensure seamless cable management with the flexibility to add one or two saddles based on trolley weight limits. Order with the system or separately for retrofitting, with possible bumper extensions for specific configurations.
Product Specifications
Specifications Clamping Bar
Single
Specifications D1
19 in | 480 mm
Specifications D2
10 in | 260 mm
Specifications W
31.75 in | 806 mm
Specifications Wc
12.63 in | 320 mm
Specifications Weight
38.6 lb | 17.5 kg
