Heavy Duty I Beam Auxiliary Saddle
Heavy Duty I Beam Auxiliary Saddle
SKU:CRA-267298
Upgrade your crane control system with the Heavy Duty I Beam Auxiliary Saddle for added cable support and organization.
Regular price
$229.99
Regular price
Sale price
$229.99
Unit price
per
Initiate Order
Heavy Duty I Beam Auxiliary Saddle
$229.99
Quantity: 1
Claim Your Seller Account
Heavy Duty I Beam Auxiliary Saddle
$229.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty I Beam Auxiliary Saddle is designed to provide additional support for large cable packages that cannot fit on the primary saddle or to separate power and control cables in crane control systems. This saddle features a double clamping bar, dimensions of 19 inches by 19 inches (480mm x 480mm), and a weight of 47.8 lbs (21.7 kg). It is adaptable for one or two additional saddles based on the trolley's weight limit. Ideal for industrial settings, these auxiliary saddles can be ordered separately for existing systems and may require bumper extensions for specific configurations.

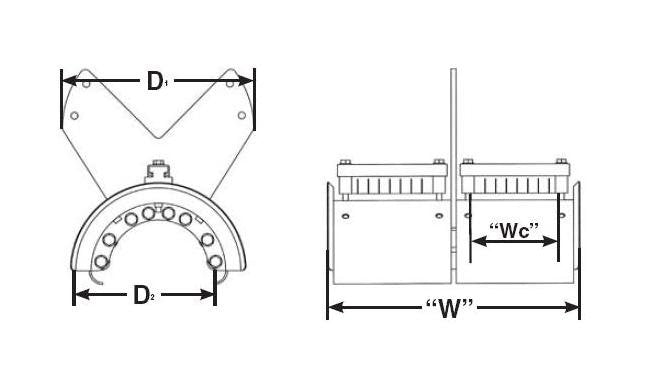

Product Specifications
Specifications Clamping Bar
Double
Specifications D1
19 in | 480 mm
Specifications D2
19 in | 480 mm
Specifications W
18.50 in | 470 mm
Specifications Wc
6.00 in | 152 mm
Specifications Weight
47.8 lb | 21.7 kg
