Heavy Duty I Beam Auxiliary Saddle
Heavy Duty I Beam Auxiliary Saddle
SKU:CRA-c7247c
Upgrade your festoon system with the Heavy Duty I Beam Auxiliary Saddle for secure cable management.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Heavy Duty I Beam Auxiliary Saddle
$349.99
Quantity: 1
Claim Your Seller Account
Heavy Duty I Beam Auxiliary Saddle
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your cable festoon system with the Heavy Duty I Beam Auxiliary Saddle, designed for large cable packages that may not fit on the primary saddle or for separating power and control cables. With a clamping bar for secure attachment, this saddle provides additional support based on your system's weight limit. Order with your system or separately for existing installations. Certain configurations may require bumper extensions for added safety and protection.

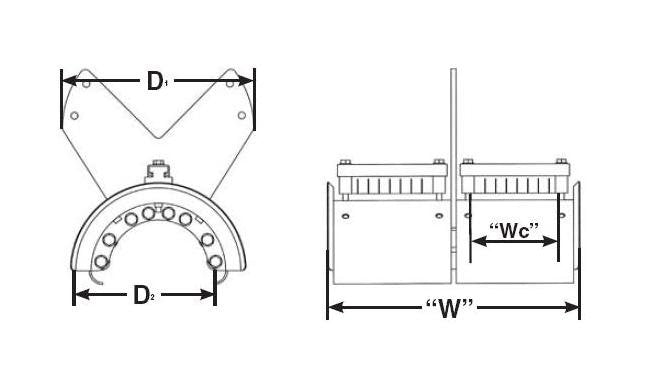

Product Specifications
Specifications Clamping Bar
Single
Specifications D1
19 in | 480 mm
Specifications D2
19 in | 480 mm
Specifications W
31.75 in | 806 mm
Specifications Wc
12.63 in | 320 mm
Specifications Weight
59.4 lb | 27 kg
