Heavy Duty I Beam Auxiliary Support Saddle
Heavy Duty I Beam Auxiliary Support Saddle
SKU:CRA-d82088
Enhance cable management with the Heavy Duty I Beam Auxiliary Support Saddle. Ideal for large cable packages and distinct cable separation needs.
Regular price
$159.99
Regular price
Sale price
$159.99
Unit price
per
Initiate Order
Heavy Duty I Beam Auxiliary Support Saddle
$159.99
Quantity: 1
Claim Your Seller Account
Heavy Duty I Beam Auxiliary Support Saddle
$159.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

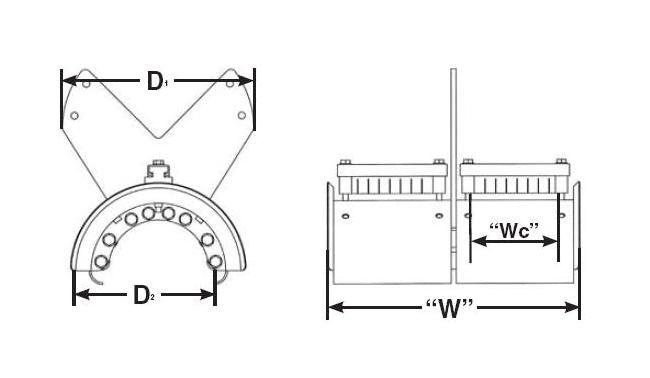

The Heavy Duty I Beam Auxiliary Support Saddle is essential for certain crane applications requiring additional support for large cable packages or separation of power and control cables. Designed with precise specifications including D1: 19 in, D2: 10 in, Wc: 6.00 in, W: 18.50 in, a Single Clamping Bar, and weighing 33.5 lb, this auxiliary saddle enhances cable festoon systems by ensuring secure cable management. Whether adding one or two saddles, these supports can be ordered with initial crane systems or separately for existing setups. Note: Bumper extensions may be necessary for specific configurations.
Product Specifications
Specifications Clamping Bar
Single
Specifications D1
19 in | 480 mm
Specifications D2
10 in | 260 mm
Specifications W
18.50 in | 470 mm
Specifications Wc
6.00 in | 152 mm
Specifications Weight
33.5 lb | 15.2 kg
