Heavy Duty I Beam Cable Fes. Auxiliary Saddle

Name: Heavy Duty I Beam Cable Fes. Auxiliary Saddle
Brand: Clutch Engineering
SKU: CRA-c892b1
Price: 289.99 USD
Availability: OutOfStock

SKU:CRA-c892b1

Enhance cable management with our Heavy Duty I Beam Cable Festoon Auxiliary Saddle, designed for added support and cable segregation in industrial applications.

$289.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Heavy Duty I Beam Cable Festoon Auxiliary Saddle is an essential addition for applications requiring extra support for large cable packages or segregation of power and control cables. Designed for Series 450 Heavy Duty I Beam Festoon Systems, it offers reliable support and can accommodate one or two additional saddles based on trolley weight limits. Ensure seamless installation by ordering auxiliary support saddles with your initial purchase or separately for existing systems. Note that specific configurations may necessitate bumper extensions for optimal functionality.

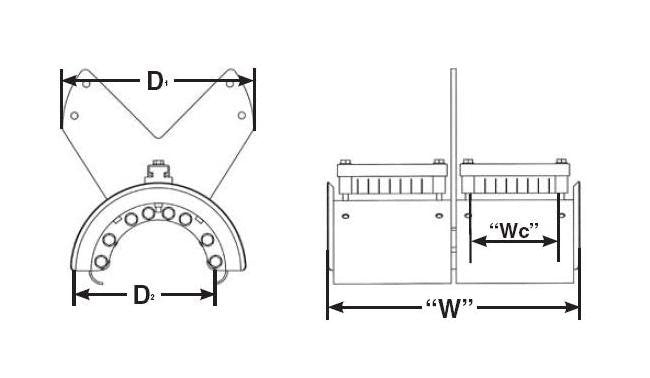

Product Specifications

Specifications Clamping Bar

Single

Specifications D1

19 in | 480 mm

Specifications D2

10 in | 260 mm

Specifications W

31.75 in | 806 mm

Specifications Wc

12.63 in | 320 mm

Specifications Weight

46.4 lb | 21 kg
