Heavy Duty I Beam Festoon Auxiliary Saddle
Heavy Duty I Beam Festoon Auxiliary Saddle
SKU:CRA-d2bbe5
Enhance cable management with the Heavy Duty I Beam Festoon Auxiliary Saddle for secure separation and support in crane control applications.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Heavy Duty I Beam Festoon Auxiliary Saddle
$249.99
Quantity: 1
Claim Your Seller Account
Heavy Duty I Beam Festoon Auxiliary Saddle
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

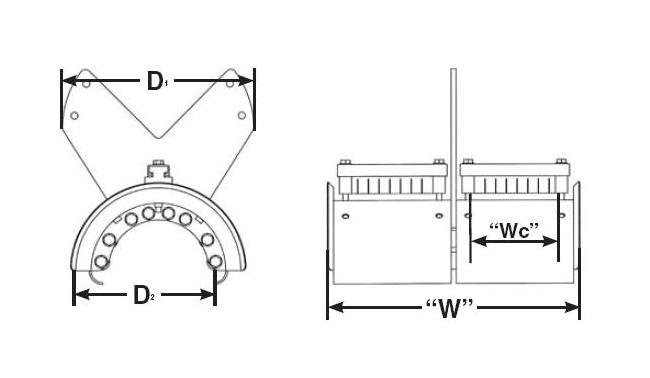

The Heavy Duty I Beam Festoon Auxiliary Saddle is designed to provide additional support in crane control applications where large cable packages need separation or extra support. With dimensions of D1: 14 in, D2: 10 in, Wc: 12.63 in, and W: 31.75 in, this saddle can accommodate heavy-duty cables efficiently. Its single clamping bar ensures secure installation, and weighing 38.5 lb, it offers durability and reliability. Compatible with Series 450 Heavy Duty I Beam systems, the auxiliary saddle can be added during the initial order or retrofitted to existing setups, making it a versatile solution for diverse operational needs.
Product Specifications
Specifications Clamping Bar
Single
Specifications D1
14 in | 360 mm
Specifications D2
10 in | 260 mm
Specifications W
31.75 in | 806 mm
Specifications Wc
12.63 in | 320 mm
Specifications Weight
38.5 lb | 17.5 kg
