Heavy Duty I Beam Festoon Auxiliary Saddle
Heavy Duty I Beam Festoon Auxiliary Saddle
SKU:CRA-3bf1d3
Enhance cable management with the Heavy Duty I Beam Festoon Auxiliary Saddle. Secure hold, versatile application, and easy retrofit options available.
Regular price
$169.99
Regular price
Sale price
$169.99
Unit price
per
Initiate Order
Heavy Duty I Beam Festoon Auxiliary Saddle
$169.99
Quantity: 1
Claim Your Seller Account
Heavy Duty I Beam Festoon Auxiliary Saddle
$169.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

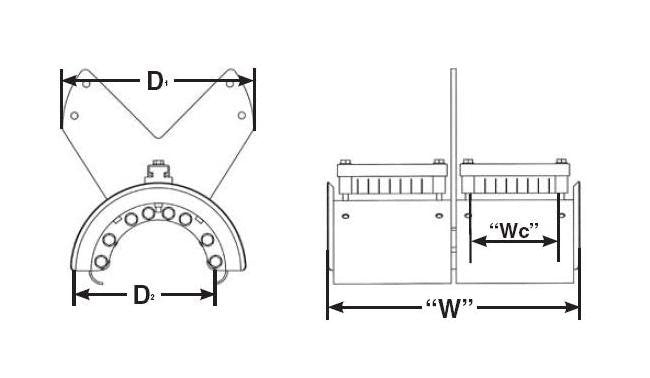

The Heavy Duty I Beam Festoon Auxiliary Saddle is designed for applications requiring additional support for large cable packages or separation of power and control cables. With dimensions D1: 19 in, D2: 10 in, Wc: 6.00 in, and W: 18.50 in, this auxiliary saddle features a double clamping bar for secure installation. Weighing 37.8 lb, it offers versatility in trolley weight limits. Ideal for crane control systems, this saddle ensures efficient cable management. Order with your system or separately for retrofitting. Bumper extensions may be necessary for specific configurations.
Product Specifications
Specifications Clamping Bar
Double
Specifications D1
19 in | 480 mm
Specifications D2
10 in | 260 mm
Specifications W
18.50 in | 470 mm
Specifications Wc
6.00 in | 152 mm
Specifications Weight
37.8 lb | 17.1 kg
