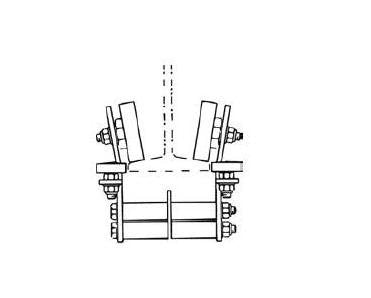

Heavy Duty I Beam Festoon Running Gear - Series 450 for S Beams

Name: Heavy Duty I Beam Festoon Running Gear - Series 450 for S Beams
Brand: Clutch Engineering
SKU: CRA-f5da9a
Price: 299.99 USD
Availability: OutOfStock

SKU:CRA-f5da9a

Durable Series 450 Running Gear for S Beams with 315 lb max load, ideal for heavy-duty crane control systems.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Series 450 Running Gear for S Beams is a robust solution designed for crane control and electrification applications. Featuring (4) side shields with hardened steel main rollers and zinc-plated anti-lift rollers, this running gear ensures smooth movement and stability. With a maximum load capacity of 315 lb and an operating temperature range of -22 to 220 ÂºF, it provides reliable performance in varied environments. The steel main rollers, polyurethane tire, and horizontal guide rollers deliver optimal functionality, making it a versatile choice for heavy-duty festoon systems. Designed for easy maintenance, the independent side shield removal feature adds convenience to your operations.

Product Specifications

Specifications Beam Size

S10 x 35.0 in

Specifications Main Roller Diameter

2.5 in | 62 mm

Specifications Maximum Load

315 lb | 143 kg

Specifications Operating Temperature

-22 to 220 ÂºF

Specifications Running Gear Type

Steel Main Rollers, Polyurethane Tire, with Horizontal Guide Rollers

Specifications Speed

500 fpm

Specifications Weight

23.3 lb | 10.6 kg
