Heavy Duty I Beam Festoon System
Heavy Duty I Beam Festoon System
SKU:CRA-7405d5
Reliable Series 450 Running Gear for S Beams with hardened steel rollers, 1100 lb capacity, and easy maintenance.
Regular price
$299.00
Regular price
Sale price
$299.00
Unit price
per
Initiate Order
Heavy Duty I Beam Festoon System
$299.00
Quantity: 1
Claim Your Seller Account
Heavy Duty I Beam Festoon System
$299.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

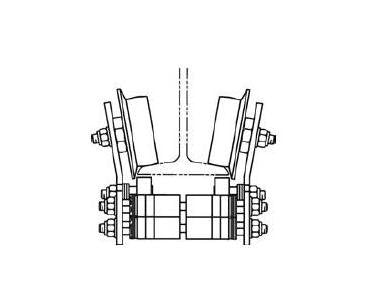

The Series 450 Heavy Duty I Beam Festoon System is a reliable solution designed for Crane Control & Electrification applications. Each running gear includes 4 side shields with hardened steel main rollers and zinc-plated anti-lift rollers. With a weight capacity of 1100 lb and operating temperature range from -22 to 220 °F, this system ensures smooth operation at high speeds of up to 500 fpm. Easy side shield removal allows for convenient maintenance, while the sturdy construction of galvanized steel spacers and stainless steel fasteners ensures durability and longevity.
Product Specifications
Specifications Beam Size
S6 x 12.5 in
Specifications Main Roller Diameter
4 in | 100 mm
Specifications Maximum Load
1100 lb | 500 kg
Specifications Operating Temperature
-22 to 220 ºF
Specifications Running Gear Type
Steel Main Rollers, Flanged, with Anti-Lift Rollers
Specifications Speed
500 fpm
Specifications Weight
38.5 lb | 17.5 kg
