Heavy Duty I Beam Festoon System Auxiliary Saddle
Heavy Duty I Beam Festoon System Auxiliary Saddle
SKU:CRA-c4007e
Enhance cable management with the Heavy Duty I Beam Festoon System Auxiliary Saddle. Double clamping bars, secure support, ideal for large cables.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Heavy Duty I Beam Festoon System Auxiliary Saddle
$89.99
Quantity: 1
Claim Your Seller Account
Heavy Duty I Beam Festoon System Auxiliary Saddle
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

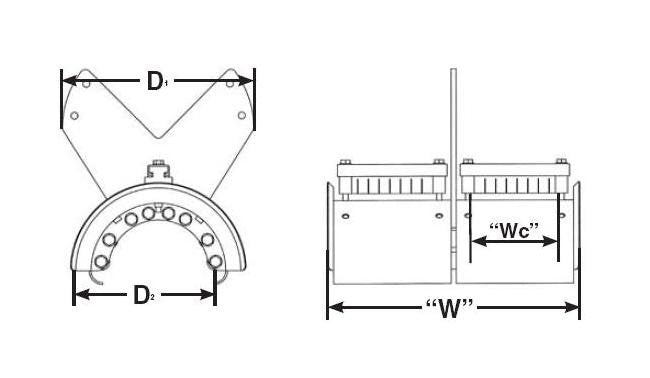

The Heavy Duty I Beam Festoon System Auxiliary Saddle is a crucial component for specific applications requiring additional support for large cable packages or separation of power and control cables. Designed with double clamping bars for secure cable management, this saddle accommodates cables with dimensions D1: 10 in, D2: 10 in, Wc: 6.00 in, and overall dimensions of W: 18.50 in. With a weight of 26.7 lb, this auxiliary saddle ensures reliable cable support. When added to existing systems, the saddle enhances cable organization, meeting the weight limit requirements of the trolley. Its robust construction and compatibility with heavy-duty I beam festoon systems make it a versatile and durable solution for industrial settings.
Product Specifications
Specifications Clamping Bar
Double
Specifications D1
10 in | 260 mm
Specifications D2
10 in | 260 mm
Specifications W
18.50 in | 470 mm
Specifications Wc
6.00 in | 152 mm
Specifications Weight
26.7 lb | 12.1 kg
