Heavy Duty I Beam Festoon System Auxiliary Saddle
Heavy Duty I Beam Festoon System Auxiliary Saddle
SKU:CRA-a37934
Enhance cable management with precision using the Heavy Duty I Beam Festoon System Auxiliary Saddle. Secure, reliable, and efficient.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Heavy Duty I Beam Festoon System Auxiliary Saddle
$299.99
Quantity: 1
Claim Your Seller Account
Heavy Duty I Beam Festoon System Auxiliary Saddle
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

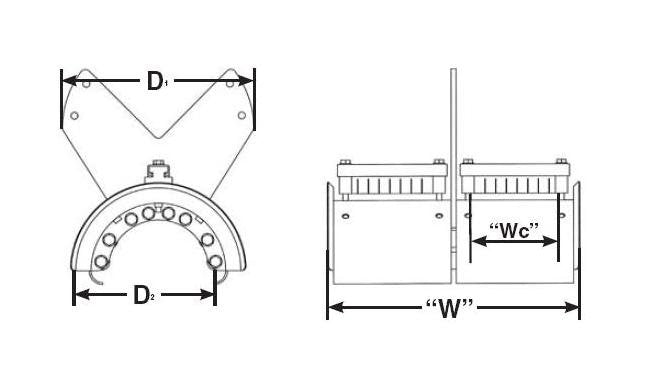

The Heavy Duty I Beam Festoon System Auxiliary Saddle is a crucial component for specific applications requiring additional support for large cable packages that cannot fit on the primary saddle or to separate power and control cables effectively. Designed with precision, this auxiliary saddle features dimensions D1: 14 in, D2: 14 in, Wc: 6.00 in, and W: 18.50 in, with a single clamping bar for secure cable management. With a weight of 31 lb, this auxiliary saddle can be tailored to meet various weight limit requirements for the trolley. Ensure optimum cable organization and management with the Series 450 Heavy Duty I Beam Festoon System Auxiliary Saddle.
Product Specifications
Specifications Clamping Bar
Single
Specifications D1
14 in | 360 mm
Specifications D2
14 in | 360 mm
Specifications W
18.50 in | 470 mm
Specifications Wc
6.00 in | 152 mm
Specifications Weight
31 lb | 14.1 kg
