Heavy Duty I Beam Festoon System - Series 450 Running Gear for S Beams

Name: Heavy Duty I Beam Festoon System - Series 450 Running Gear for S Beams
Brand: Clutch Engineering
SKU: CRA-3d0074
Price: 349.99 USD
Availability: OutOfStock

SKU:CRA-3d0074

Experience durability & precision with Series 450 Running Gear for S Beams. Max load: 450 lbs, Speed: 500 fpm. Shop now!

$349.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

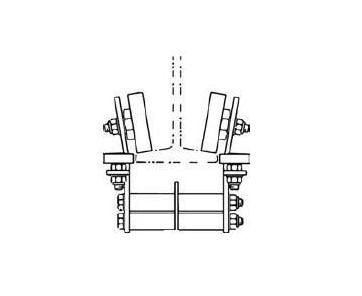

The Series 450 Running Gear for S Beams is a robust solution designed for seamless crane control and electrification. Crafted with hardened steel main rollers and zinc-plated anti-lift rollers featuring sealed ball bearings, this running gear ensures smooth operation under extreme conditions. With a maximum load capacity of 450 lbs and a speed of 500 fpm, it provides reliable performance. The steel main rollers, crowned with horizontal guide rollers, guarantee precise movement and durability. Ideal for heavy-duty applications, the Series 450 Running Gear is engineered for efficiency and longevity.

Product Specifications

Specifications Beam Size

S10 x 25.4 in

Specifications Main Roller Diameter

2.5 in | 62 mm

Specifications Maximum Load

450 lb | 204 kg

Specifications Operating Temperature

-22 to 220 ÂºF

Specifications Running Gear Type

Steel Main Rollers, Crowned, with Horizontal Guide Rollers

Specifications Speed

500 fpm

Specifications Weight

24.8 lb | 11.2 kg
