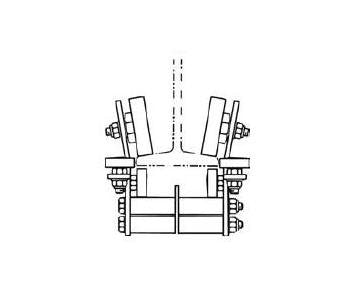

Heavy Duty I Beam Festoon System - Series 450 Running Gear for S Beams

Name: Heavy Duty I Beam Festoon System - Series 450 Running Gear for S Beams
Brand: Clutch Engineering
SKU: CRA-0738e5
Price: 499.99 USD
Availability: OutOfStock

SKU:CRA-0738e5

Upgrade your crane system with the Series 450 Running Gear for S Beams. Heavy-duty design for enhanced performance.

$499.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your crane system with the durable Series 450 Running Gear for S Beams. This steel main roller system includes (4) side shields, hardened steel main rollers with precision ball bearings, and zinc-plated anti-lift rollers. With a maximum load capacity of 1100 lb (500 kg), operating temperature range of -22 to 220 °F, and designed for easy shield removal, this running gear ensures smooth and efficient operation, meeting strict industry standards for performance and reliability.

Product Specifications

Specifications Beam Size

S10 x 35.0 in

Specifications Main Roller Diameter

4 in | 100 mm

Specifications Maximum Load

1100 lb | 500 kg

Specifications Operating Temperature

-22 to 220 ÂºF

Specifications Running Gear Type

Steel Main Rollers, Crowned, with Horizontal Guide & Anti-Lift Rollers

Specifications Speed

500 fpm

Specifications Weight

38.5 lb | 17.5 kg

Heavy Duty I Beam Festoon System - Series 450 Running Gear for S Beams
