Heavy Duty I Beam Festoon System - Series 450 Running Gear for S Beams
Heavy Duty I Beam Festoon System - Series 450 Running Gear for S Beams
SKU:CRA-3a5a32
Heavy-duty Series 450 Running Gear for S Beams: durable, precise cable guidance, max load 1100 lb, ideal for industrial applications.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Heavy Duty I Beam Festoon System - Series 450 Running Gear for S Beams
$299.99
Quantity: 1
Claim Your Seller Account
Heavy Duty I Beam Festoon System - Series 450 Running Gear for S Beams
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

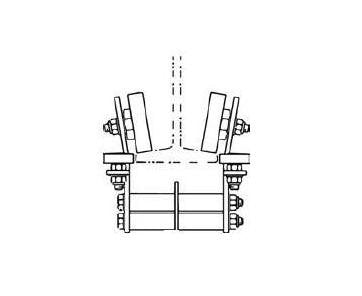

The Series 450 Running Gear for S Beams is a robust solution designed for industrial applications requiring reliable cable festoon systems. This set includes (4) side shields with durable zinc-plated hardened steel main rollers and sealed ball bearings for smooth operation. With a maximum load capacity of 1100 lb and an operating temperature range from -22 to 220 °F, this running gear ensures optimal performance in diverse environments. Its independent side shield removal feature enhances maintenance efficiency, while the steel main rollers with horizontal guide rollers deliver precise cable guidance at speeds of up to 500 fpm. Trust in the quality and durability of this heavy-duty festoon system for your crane control needs.
Product Specifications
Specifications Beam Size
S12 x 35.0 in
Specifications Main Roller Diameter
4 in | 100 mm
Specifications Maximum Load
1100 lb | 500 kg
Specifications Operating Temperature
-22 to 220 ºF
Specifications Running Gear Type
Steel Main Rollers, Crowned, with Horizontal Guide Rollers
Specifications Speed
500 fpm
Specifications Weight
36.1 lb | 16.4 kg
