Heavy Duty I Beam Festoon System - Series 450 Running Gear for S Beams
Heavy Duty I Beam Festoon System - Series 450 Running Gear for S Beams
SKU:CRA-f2d8a5
Durable Series 450 Running Gear for S Beams - Hardened steel rollers with sealed bearings, supports up to 1100 lb, ideal for heavy-duty crane systems.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Heavy Duty I Beam Festoon System - Series 450 Running Gear for S Beams
$299.99
Quantity: 1
Claim Your Seller Account
Heavy Duty I Beam Festoon System - Series 450 Running Gear for S Beams
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

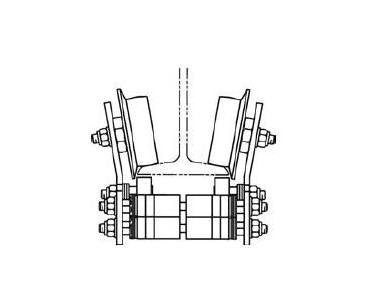

The Series 450 Running Gear for S Beams is a robust solution for crane control and electrification needs. This running gear features hardened steel main rollers with sealed precision ball bearings, zinc-plated anti-lift rollers, and independent side shield removal design. With a maximum load capacity of 1100 lb and operating temperature range from -22 to 220°F, this system ensures durability and reliability in heavy-duty applications. Compliant with industry standards, it offers smooth operation at speeds up to 500 fpm, making it ideal for industrial settings.
Product Specifications
Specifications Beam Size
S10 x 35.0 in
Specifications Main Roller Diameter
4 in | 100 mm
Specifications Maximum Load
1100 lb | 500 kg
Specifications Operating Temperature
-22 to 220 ºF
Specifications Running Gear Type
Steel Main Rollers, Flanged, with Anti-Lift Rollers
Specifications Speed
500 fpm
Specifications Weight
38.5 lb | 17.5 kg
