Heavy Duty I Beam Festoon System - Series 450 Running Gear for S Beams
Heavy Duty I Beam Festoon System - Series 450 Running Gear for S Beams
SKU:CRA-d8b720
Durable Series 450 Running Gear for S Beams - Zinc-Plated Rollers, High Load Capacity & Easy Maintenance
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

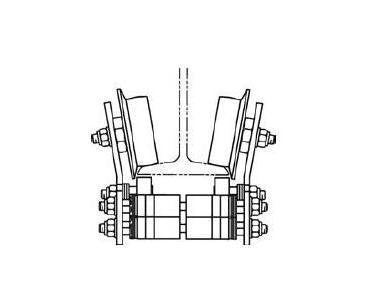

The Series 450 Running Gear for S Beams is a robust solution designed for seamless operation in challenging environments. Featuring (4) side shields with hardened steel main rollers and zinc-plated anti-lift rollers, this running gear ensures smooth movement and durability. With a maximum load capacity of 1100 lb and an operating temperature range from -22 to 220 °F, it is ideal for heavy-duty applications. The galvanized steel spacers and stainless steel fasteners provide added strength and corrosion resistance. Independently removable side shields enhance maintenance efficiency, making it a reliable choice for crane control systems.
Product Specifications
Specifications Beam Size
S8 x 23.0 in
Specifications Main Roller Diameter
4 in | 100 mm
Specifications Maximum Load
1100 lb | 500 kg
Specifications Operating Temperature
-22 to 220 ºF
Specifications Running Gear Type
Steel Main Rollers, Flanged, with Anti-Lift Rollers
Specifications Speed
500 fpm
Specifications Weight
38.5 lb | 17.5 kg
