Heavy Duty I Beam Festoon System - Series 450 Running Gear for W Beams
Heavy Duty I Beam Festoon System - Series 450 Running Gear for W Beams
SKU:CRA-f7c94d
Enhance operational efficiency with Series 450 Running Gear for W Beams. Steel main rollers, polyurethane tires & more.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Heavy Duty I Beam Festoon System - Series 450 Running Gear for W Beams
$499.99
Quantity: 1
Claim Your Seller Account
Heavy Duty I Beam Festoon System - Series 450 Running Gear for W Beams
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

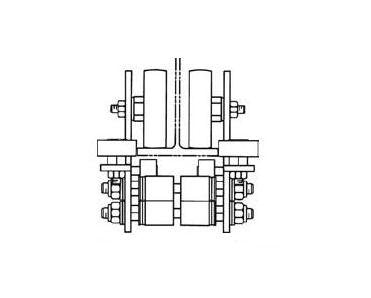

Enhance operational efficiency with the Series 450 Running Gear for W Beams. This running gear features steel main rollers, polyurethane tires, and horizontal guide rollers for smooth movement and reliable load support. With a maximum load capacity of 770 lb, operating temperature range of -22 to 220 °F, and a speed of 500 fpm, this system is designed to meet the demands of heavy-duty applications. The independent side shield removal design enhances maintenance convenience, while the hardened steel construction ensures durability in challenging environments.
Product Specifications
Specifications Beam Size
W5 x 16 in
Specifications Main Roller Diameter
4 in | 100 mm
Specifications Maximum Load
770 lb | 350 kg
Specifications Operating Temperature
-22 to 220 ºF
Specifications Running Gear Type
Steel Main Rollers, Polyurethane Tire, with Horizontal Guide Rollers
Specifications Speed
500 fpm
Specifications Weight
31.3 lb | 14.2 kg
