Heavy Duty I Beam Festoon System - Series 450 Running Gear for W Beams

Name: Heavy Duty I Beam Festoon System - Series 450 Running Gear for W Beams
Brand: Clutch Engineering
SKU: CRA-fd398a
Price: 899.99 USD
Availability: OutOfStock

SKU:CRA-fd398a

Improve crane operations with Series 450 Running Gear for W Beams: durable, efficient, and easy maintenance.

$899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

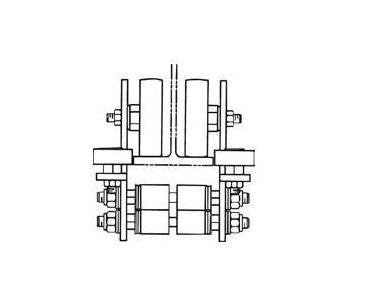

Enhance your crane operations with the Series 450 Running Gear designed for W Beams. This durable running gear includes (4) side shields with hardened steel main rollers and zinc-plated guide rollers for smooth movement. With a weight capacity of 1100 lb and a speed of 500 fpm, this system ensures efficient and reliable performance in temperatures ranging from -22 to 220 ºF. The independent side shield removal feature enhances maintenance convenience, making it ideal for heavy-duty industrial applications.

Product Specifications

Specifications Beam Size

W5 x 16 in

Specifications Main Roller Diameter

4 in | 100 mm

Specifications Maximum Load

1100 lb | 500 kg

Specifications Operating Temperature

-22 to 220 ÂºF

Specifications Running Gear Type

Steel Main Rollers, Crowned, with Horizontal Guide Rollers

Specifications Speed

500 fpm

Specifications Weight

36.1 lb | 16.4 kg

Heavy Duty I Beam Festoon System - Series 450 Running Gear for W Beams
