Heavy Duty I Beam Festoon System - Series 450 Running Gear for W Beams
Heavy Duty I Beam Festoon System - Series 450 Running Gear for W Beams
SKU:CRA-5eb876
Enhance crane control with Series 450 Running Gear for W Beams - robust design, smooth operation, and easy maintenance.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Heavy Duty I Beam Festoon System - Series 450 Running Gear for W Beams
$349.99
Quantity: 1
Claim Your Seller Account
Heavy Duty I Beam Festoon System - Series 450 Running Gear for W Beams
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

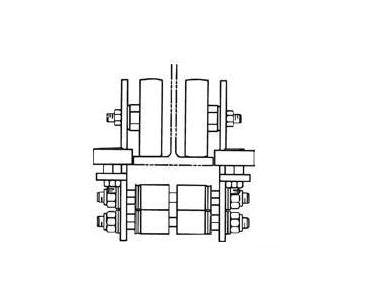

The Series 450 Running Gear for W Beams is a robust solution designed for crane control & electrification. It includes four side shields with hardened steel main rollers, zinc-plated horizontal guide rollers, and a maximum load capacity of 450 lb. With a main roller diameter of 2.5 inches and operating temperature ranging from -22 to 220 °F, this system ensures smooth and efficient operations. Additionally, the gear allows for independent side shield removal, enhancing maintenance flexibility and efficiency for heavy-duty applications.
Product Specifications
Specifications Beam Size
W6 x 12 in
Specifications Main Roller Diameter
2.5 in | 62 mm
Specifications Maximum Load
450 lb | 204 kg
Specifications Operating Temperature
-22 to 220 ºF
Specifications Running Gear Type
Steel Main Rollers, Crowned, with Horizontal Guide Rollers
Specifications Speed
500 fpm
Specifications Weight
24.8 lb | 11.2 kg
