Heavy Duty I Beam Festoon System - Series 450 Running Gear for W Beams

Name: Heavy Duty I Beam Festoon System - Series 450 Running Gear for W Beams
Brand: Clutch Engineering
SKU: CRA-32c9a2
Price: 499.99 USD
Availability: OutOfStock

SKU:CRA-32c9a2

Upgrade your crane system with Series 450 Running Gear - durable, high-load capacity, and easy maintenance

$499.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

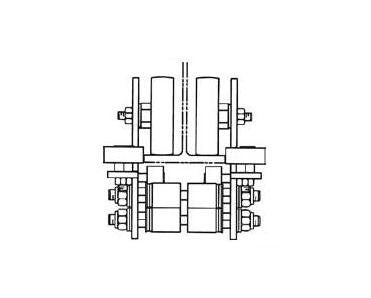

Enhance your crane control system with the Series 450 Running Gear for W Beams. This heavy-duty festoon system includes four side shields with hardened steel main rollers, zinc-plated guide and anti-lift rollers, and galvanized steel spacers. With a maximum load capacity of 1100 lb and operating temperatures from -22 to 220 ÂºF, this running gear ensures smooth and reliable operation at speeds up to 500 fpm. Designed for easy maintenance, it meets the stringent requirements of industrial and government procurement standards.

Product Specifications

Specifications Beam Size

W6 x 16 in

Specifications Main Roller Diameter

4 in | 100 mm

Specifications Maximum Load

1100 lb | 500 kg

Specifications Operating Temperature

-22 to 220 ÂºF

Specifications Running Gear Type

Steel Main Rollers, Crowned, with Horizontal Guide & Anti-Lift Rollers

Specifications Speed

500 fpm

Specifications Weight

38.5 lb | 17.5 kg
