Heavy Duty I Beam Festoon System - Series 450 Running Gear for W Beams
Heavy Duty I Beam Festoon System - Series 450 Running Gear for W Beams
SKU:CRA-000dc1
Enhance crane systems with Series 450 Running Gear: durable, high load capacity, smooth operation.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Heavy Duty I Beam Festoon System - Series 450 Running Gear for W Beams
$289.99
Quantity: 1
Claim Your Seller Account
Heavy Duty I Beam Festoon System - Series 450 Running Gear for W Beams
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

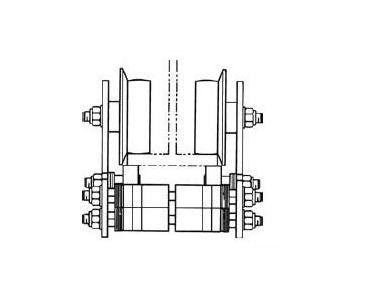

Upgrade your crane system with the Series 450 Running Gear for W Beams. This running gear includes four side shields with hardened steel main rollers, zinc-plated anti-lift rollers, and galvanized steel spacers for enhanced durability. With a maximum load capacity of 450 lb, operating temperatures from -22 to 220 ºF, and a main roller diameter of 2.5 in, this system ensures smooth and efficient operation at speeds up to 500 fpm. Designed for easy side shield removal, it is ideal for heavy-duty applications requiring precision and reliability.
Product Specifications
Specifications Beam Size
W5 x 16 in
Specifications Main Roller Diameter
2.5 in | 62 mm
Specifications Maximum Load
450 lb | 204 kg
Specifications Operating Temperature
-22 to 220 ºF
Specifications Running Gear Type
Steel Main Rollers, Flanged, with Anti-Lift Rollers
Specifications Speed
500 fpm
Specifications Weight
24 lb | 10.9 kg
